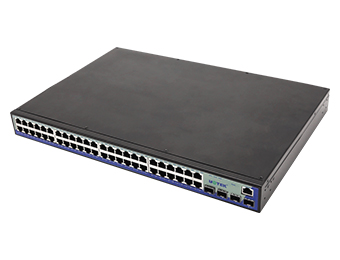

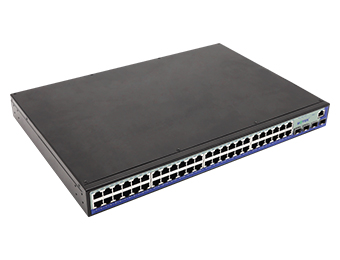

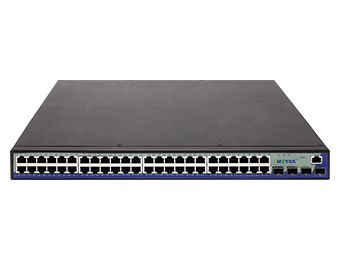

Model: UT-63448GC-48GT-4XGP-POE
● 48 Gigabit POE ports + 4 10Gbps SFP+ ports
● 10Gbps SFP+ ports, support 10Gigabit/Gigabit
● PIM-SM, IGMP Snooping filter multicast packets
● IEEE 802.1Q VLAN, convenient for network design
● QoS with 8 queue mapping to increase network stability
● Ring, ERPS, STP/RSTP/MSTP network redundancy, broadcast storm protection
● SNMPv1/v2v3 to ensure network security management
● Link aggregation (static convergence/LACP) to optimize network bandwidth
● ACL IPV4/IPV6 to enhance flexibility and network management security
● Port mirroring, convenient for online debugging
● Port speed limit\broadcast storm suppression\multicast storm suppression\unknown unicast storm suppression
● RMON for high efficiency on network monitoring
● Supports loop circuit detection
● Supports log management
● Layer 3 switching function (static routing/RIP/OSPF/VRRP)
● Power supply, port abnormal status alarm function
● Operating temperature: -40~75°C
● IP40 protection, fan-less, rackmount design
UT-63448GC-48GT-4XGP-POE is a high-performance, cost-effective managed 10G Layer 3 POE Ethernet switch. It provides 48 Gigabit POE ports, 4 10G SFP+ ports; this not only increasing the bandwidth, but also improving network data communication, it is suitable for large-scale industrial network applications.
The switch supports a variety of Layer 2 features (port mirroring, VLAN, port aggregation, IGMP Snooping, QoS, STP/RSTP/MSTP, etc.) and basic Layer 3 routing protocols (static routing/RIP/OSPF/VRRP), which providing users with a complete solution to build large scale networking for industrial automation, intelligent transportation, video surveillance, etc.
Protocol Standard
Standard: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.3ab, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W, IEEE802.1s, IEEE802.3ad, IEEE802.1x, IEEE802.3ae, IEEE802.2af/at
Protocol: ARP, ICMP, TCP, HTTP/HTTPS, Telnet, STP/RSTP/MSTP, LLDP, IGMP-Snooping, SNMPv1/v2c/v3, DHCP Server, NTP, LACP, VLAN, Ring, ERPS, SSH, RMON, UDLD
Layer 3 switching technologies: static routing, RIP V1/V2, OSPF, VRRP, PIM-SM router redundancy
Flow control: IEEE802.3x, backpressure flow control
Interface
Fiber port: 1Gbps SFP/10Gbps SFP+
RJ-45 port: 10/100/1000Base-T, auto-MDI/MDI-X
Console port: serial port debugging (RJ45 port)
LED indicator
power indicator, network indicator, alarm indicator, running indicator, POE indicator
Transmission Distance
Cat.5e: 100m
Optical module
Single-mode: 1,310nm 20/40Km
1,550nm 60/80/100/120Km
Multi-mode: 1,310nm 2Km
Switch property
100M forwarding rate: 148,810pps
1000M forwarding rate: 1,488,095pps
10G forwarding rate: 14,881,000pps
Transmission mode: store and forward
MAC address size: 32K
Cache size: 16Mb
Switching bandwidth: 216G
Max. frame length: 12KB
Host unicast routing: 12K (IPv4)/4K (IPv6)
Segment unicast routing: 12K (IPv4/IPv6)
Power requirement
Input voltage: 220VAC(88-264VAC)/50-60Hz or 220VDC(180-360VDC)
Power consumption
Single POE port up to 30W
total POE power consumption:
Not exceed to 690W (55°C);
Not exceed to 520W (65°C);
Not exceed to 490W (75°C);
Without POE: Max. 50W
Mechanical characteristic
IP Rating: IP40
Weight: <7kg
Installation: Rack mounting
Device size (W x H x D): 440mm x 44mm x 300mm
Operating environment
Operating temperature: -40 ~ 75°C
Storage temperature: -40 ~ 85°C
Relative humidity: 5~95% (non-condensing)
Industrial standard
EMI: FCC Part 15, CISPR (EN55022) class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
