Model： UT-63408GC-8GT-4XGP
● Supports 8 Gigabit Ethernet ports + 4 10Gbps SFP+ interfaces
● 10GBase-R SFP interfaces support web-configurable 1000Base-X or 10GBase-R mode selection
● Supports PIM-SM and IGMP Snooping for multicast packet filtering
● Supports IEEE 802.1Q VLANs for simplified network planning
● Supports 8 QoS-enabled queues to enhance network stability
● Supports Ring, ERPS, STP/RSTP/MSTP network redundancy to prevent broadcast storms
● Supports SNMPv1/v2c/v3 for secure network management
● Supports link aggregation (static aggregation/LACP) to optimize network bandwidth
● Supports access control lists (ACL IPV4/IPV6) for enhanced flexibility and network management security
● Supports port mirroring for convenient online debugging
● Supports port rate limiting, broadcast storm suppression, multicast storm suppression, and unknown unicast storm suppression to ensure network stability
● Supports RMON for efficient and flexible network monitoring
● Supports VLANs to simplify network planning
● Supports loop detection to effectively eliminate impacts from port loops
● Supports SFP DDM for fiber diagnostics and troubleshooting
● Supports log management
● Supports Layer 3 switching functions (static routing/RIP/OSPF/VRRP)
● Supports power and port status indicator alarms
● Supports wide temperature operation: -40°C to 75°C
The UT-63408GC-8GT-4XGP series is a managed 10 Gigabit Ethernet Layer 3 switch. It provides 8 Gigabit Ethernet ports + 4 10Gbps SFP+ interfaces, not only increasing bandwidth and enhancing network data communication but also making it highly suitable for large-scale industrial network applications.
This product supports multiple Layer 2 software features (port mirroring, VLAN, port aggregation, IGMP snooping, QoS, STP/RSTP/MSTP, etc.) and fundamental Layer 3 routing protocols for IPv4/IPv6 (static routing/RIP/OSPF/VRRP), providing users with a comprehensive solution. It offers more options for building large-scale local area networks in industrial application fields such as factory automation, intelligent transportation, and video surveillance.
Protocol Standard
Standard: IEEE802.3、IEEE802.3u、IEEE802.3x、IEEE802.3z、IEEE802.3ab、IEEE802.1Q、IEEE802.1p、IEEE802.1D、IEEE802.1w、IEEE802.1s、IEEE802.3ad、IEEE802.1x、IEEE802.3ae
Protocol: ARP、ICMP、TCP、HTTP/HTTPS 、Telnet、STP/RSTP/MSTP、LLDP、IGMP-Snooping、SNMPv1/v2c/v3，DHCP Server、NTP、SSH、IPV6、LACP、VLAN、ERPS、RMON、UDLD
Layer 3 Switching Technology: Static Routing, RIP V1/V2, OSPF, VRRP, PIM-SM, Supports Router Redundancy
Flow Control: IEEE 802.3x Flow Control, Backpressure Flow Control
Ports
Fiber Optic Port: 10GBase-R SFP+ port
RJ45 Port: 10/100/1000Base-T port, MDI/MDI-X auto-sensing
LED Indicators
Power Indicator, Alarm Indicator, Operation Indicator
Transmission Distance
Category 5e Twisted Pair Cable: 100m
Fiber Optic Module
Single-mode: 1310nm 20/40Km
1550nm 60/80/100/120Km
Multimode: 1310nm 2Km
Switching Performance
100Mbps Forwarding Rate: 148,810 pps
1Gbps Forwarding Rate: 1,488,095 pps
10 Gigabit forwarding rate: 14,881,000 pps
Transmission mode: Store-and-forward
MAC address space: 16K
Cache space: 12Mb
Backplane bandwidth: 96G
Maximum Frame Length: 12KB
Host Routing Table: 6K (IPv4), 2K (IPv6)
Subnet Routing Table: 512 (IPv4), 128 (IPv6)
Power Requirements
Input Voltage: 12/24/48VDC (10.8~52.8VDC), with reverse polarity protection
Power Consumption
Maximum Input Power Consumption: 650mA@24Vmax (Refer to the product label for detailed power consumption specifications)
Mechanical Specifications
Enclosure: IP40 protection rating

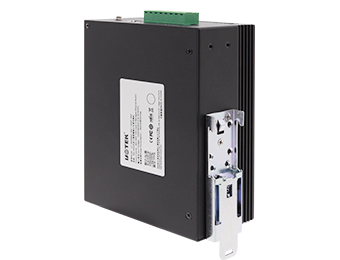

Mounting Method: DIN rail mounting
Weight: 1.3 kg
Dimensions (W x H x D): 150mm x 64mm x 120mm
Packaging Dimensions: 250mm x 205mm x 108mm
Operating Environment
Operating Temperature: -40°C to 75°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing)
Standards
EMI：FCC Part 15 Subpart B classA，EN55022 class A
EMS：
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
IEC 60068-2-6(Vibration)
