Product name：
UOTEK 10-port managed gigabit ethernet switch
Model： UT-6410GCM
● Supports different combinations of fast Ethernet ports and optical ports (supports ST/FC/SC/SFP interface types)
● Supports IGMP Snooping to filter multicast packets
●vSupports web configuration for optional 100Base-FX, 1000Base-X mode types
● Supports IEEE 802.1Q VLAN for easy network planning
● Supports QoS to implement real-time traffic classification and priority
● Supports STP/RSTP/MSTP and ERPS network redundancy functions to prevent network storms
● Supports UT-Ring private ring network function
● Supports SNMPv1/v2/v3 for network management at different levels
● Supports trap and RMON for flexible network monitoring
● Supports IEEE802.1x authentication function
● Supports link aggregation to optimize network bandwidth
● Supports port isolation and ACL to enhance network management flexibility and security
● Supports port mirroring function for online debugging
● Supports DHCP Server for assigning IP addresses with different policies
● Supports port limiting, broadcast storm suppression, multicast storm suppression, unknown unicast storm suppression to ensure network stability
● Supports LLDP, Link flap, UDLD, DDM and loop detection related link detection functions, facilitating on-site problem solving during construction.
● Supports wide temperature range working from -40-70℃
The UT-6410GCM series is a managed industrial Ethernet switch that
supports 2 Gigabit optical ports and 8 Gigabit electrical ports, as well

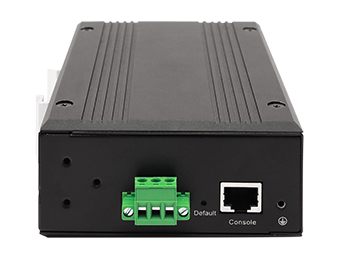

as a console port for CLI management. It supports Ethernet Layer 2
protocols required by the industrial field to ensure communication
network stability. This series of switches adopts low-power and fanless
design to ensure no noise interference, and also supports -20~75℃
operating temperature and good EMC electromagnetic compatibility
performance, ensuring stable operation in harsh industrial environments.
It provides a safe and reliable solution for building fast and stable
network terminal access networks in industrial application fields such
as factory automation, intelligent transportation, and video
surveillance.
Standards
IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z,
IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W,
IEEE802.1s, IEEE802.3ad, IEEE802.1x
Protocols: ARP, ICMP, TCP, HTTP, HTTPS, Telnet, STP/RSTP/
MSTP, LLDP, IGMP, SNMPv1/v2c/v3, DHCP Server,
ERPS, UDLD, NTP, RMON, Syslog
Flow Control: IEEE802.3x flow control, Backpressure flow control
Interfaces
Optical Interface: 100Base-FX/1000Base-X ports (SC/FC/ST/SFP slots)
RJ45 Interface: 10/100/1000Base-T port, MDI/MDI-X adaptive
LED Indicators:
Power indicator, optical port indicator, RJ45 indicator, operation indicator
Transmission Distance
Cat5e twisted pair cable: 100m
Fiber optic jumper:
Single-mode: 1310nm 20/40/60Km, 1550nm 80/100/120Km
Multi-mode: 1310nm 2Km
Switching Performance
Forwarding rate: 1488095pps
Transmission mode: Store and forward
MAC address space: 8K
Buffer space: 4.1Mb
Backplane bandwidth: 22G
Maximum frame length: 10KB
Power Requirements
Input voltage: 12/24/48VDC (10.8~52.8VDC), reverse protection supported
Power consumption:
Maximum input power 280mA@24Vmax (for detailed product power consumption, please refer to the product label)
Mechanical Characteristics
Housing: IP40 protection level

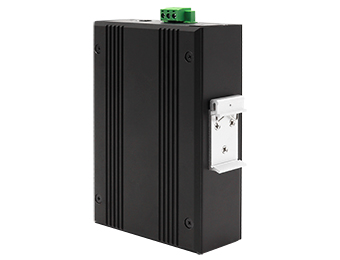

Installation method: DIN-rail/wall-mount installation
Size (W x H x D): 150mm x 47.6mm x 100mm
Packaging size: 250mm x 205mm x 55mm
Weight: 795g
Operating Environment
Operating temperature: -20°C ~75°C
Storage temperature: -40°C ~85°C
Relative humidity: 0~95% (non-condensing)
Industry Standards
EMI:
FCC Part 15, CISPR (EN55022) class A
EMS:
IEC(EN)61000-4-2(ESD),
IEC(EN)61000-4-3(RS),
IEC(EN)61000-4-4(EFT),
IEC(EN)61000-4-5(Surge),
IEC(EN)61000-4-6(CS),
IEC(EN)61000-4-8,
IEC 60068-2-27(Shock),
IEC 60068-2-32(Freefall)
