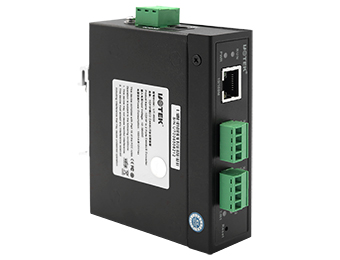

Model： UT-6502
● Realizes bidirectional data transmission between CAN-bus and fiber optic network
● Support CAN2.0 protocol
● Integrated 2-port CAN-bus communication interface, supporting 5Kbps-1Mbps custom rate
● Integrated 1-port 100M Ethernet interface
● Operating voltage: 12-36V DC
● Operating current: ≤ 150mA@12V
● Operating temperature: -40~85°C
● Isolation voltage: 1000VDC
UT-6502 is a high performance CAN-bus communication converter integrating 2 CAN interfaces and 1 Ethernet interface. The converter supports 10M/100M Ethernet network and 5Kbps~1Mbps communication rate CAN-bus interconnection, which further extends the application range of CAN-bus and Ethernet.UT-6502 converter provides Web configuration interface, users can flexibly set the operation parameters of UT-6502 converter. Industrial grade high standard design; isolation between communication interface and system, with certain anti-interference and anti-surge capability, widely used in industrial control and data communication system.
● Realizes bidirectional data transmission between CAN-bus and fiber optic network
● Support CAN2.0 protocol
● Integrated 2-port CAN-bus communication interface, supporting 5Kbps-1Mbps custom rate
● Integrated 1-port 100M Ethernet interface
● Operating voltage: 12-36V DC
● Operating current: ≤ 150mA@12V
● Operating temperature: -40~85°C
● Storage temperature: -40~85°C
● Operating humidity：5~95%（no condensing)
● Storage humidity: 5~95% (no condensing)
● Isolation voltage: 1000VDC
● Static protection: Air 8kV, contact 6kV
● Surge protection: Power port: 1.2/50us common mode 2kV, differential mode 1kV
Network port: 10/700us common mode 2kV, differential mode 1kV
CAN port: 600W
