Product name:

UOTEK 10/100M 5-Port Unmanaged Industrial Ethernet Switch

Model: UT-6405W

● Supports full/half duplex mode, auto negotiation

● Auto 10/100Mbps

● Supports crossing-identification, no need manual operation

● Built-in store-and-forward, supports multiple protocols

● Transmission data max. support 1518 bytes

● Complied with Telecom operation standard, MTBF>50,000 hours

● Auto alarm function, via FAIL, relay output

UT-6405W is an industrial unmanaged Ethernet switch with 5 fast Ethernet ports. It supports DC input reverse polarity protection; this protects the device from burning. UT-6405W supports industrial standard Din-Rail and wall-mounted installation; it is easy to be installed at any industrial field.

>>Standards
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseT(X)和100Base FX



>>Ports
RJ45 port:5 10/100BaseTXport, auto detection, full/half duplex, auto MDI/MDI-X

LED indicator: PWR, RJ-45



>>Power requirement
Input voltage: 12-48 VDC
Power consumption: Max. 2.2 Watts

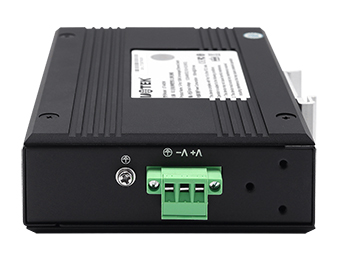

Terminal block: 1 pluggable 3-pin terminal block
Overload protection: Support

Reverse polarity protection: Support



>>Mechanical Characteristics
IP rating: IP30

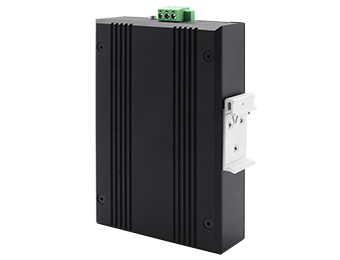

Installation: Din-Rail/wall-mounted
Dimension(W x H x D): 150mm×37mm×100mm



>>Environment
Operating temperature: -40~85
Storage temperature: -40~85
Relative humidity: 5~95% (non-condensing)



>>Industrial standards
EMI: FCC Part 15 Subpart B classA, EN55022 class A
EMS:
IEC(EN)61000-4-2(ESD), level 3
IEC(EN)61000-4-3(RS), level 3
IEC(EN)61000-4-4(EFT), level 3
IEC(EN)61000-4-5(Surge), level 3
IEC(EN)61000-4-6(CS), level 3
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
IEC 60068-2-6(Vibration)
