Product name:

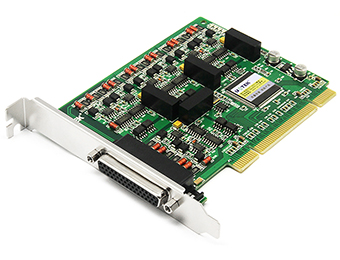

UOTEK PCI to 4 Ports RS-485/422 High Speed Serial Adapter with Isolation

Model: UT-724i

● Connector: DR44 female x1

● BUS: 32 bits universal PCI

● Signal: RS-422:T/R+, T/R-, RXD+, RXD-, GND

        RS-485:Data+(A)   Data-(B) GND

● Transmission rate: 300bps-921.6Kbps

● Data bits: 5, 6, 7, 8

● Stop bits: 1, 1.5, 2

● Check bits: None, Even, Odd, Space, Mark

● Flow control: RTS/CTS XON/XOFF

● Operating temperature: -40℃~85℃

● Optical isolation: 2,500Vrms isolated voltage, 500DC continuous specialized DC/DC module

● Interface protection: RS-422 & RS-485 provides with 600W surge, ±15KV ESD protection each line

● Transmission distance: 1.2km for RS-485/422

● System: Win2000/2003/XP/Vista/7/8/8.1/NT4.0/CE 4.2/5.0/6.0/Vxworks/Linux 2.4.x/2.6.x

UT-724i PCI multiport serial adapter with optoelectronic isolation is compatible with RS-422/485 standard; it converts PCI signal to balanced differential RS-422/485 signal. With built-in optoelectronic isolator, it provides as high as 2,500Vrms isolated voltage. The built-in instant voltage control protector is designed to protect RS-422/485 ports; it adopts advanced TVS (TRANSIENT VOLTAGE SUPPERSSOR) instant voltage control. In normal situation, TVS tube is in high impedance state; when both ends of TVS tube are impacted by high power instantly, it lowers the impedance with super high speed, and absorbs high current, so as to limit the voltage from both ends in a pre-value, and protect the circuit components from damage by high voltage impact. This protector is with lightning and ESD protection, provides 2,000V each wire with lightning surge protection, and surge voltage and instant overvoltage protection on circuit which causing by all reasons; the tiny interelectrode capacitance ensures high speed transmission for RS-422/485 ports.
