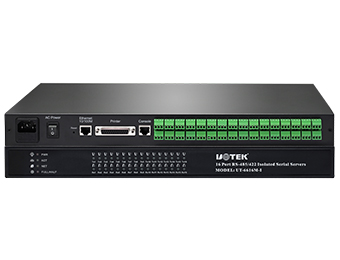

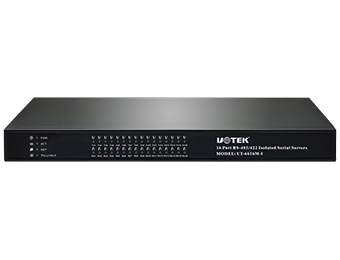

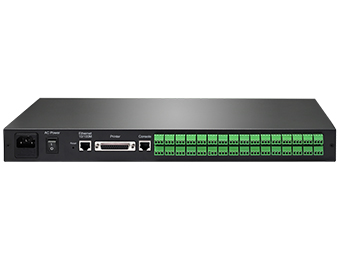

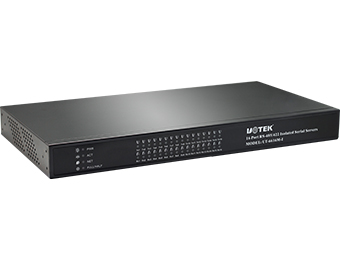

Model： UT-6616M-I
● Supports dynamic IP(DHCP) & Static IP
● Supports gateway & agent server, transmission via Internet
● Bidirectional transparent transmissions, serial to TCP/IP, no need any settings
● Supports ARP, IP, TCP, HTTP, ICMP, SOCKET & UDP protocol
● Setup wizard
UT-6616M-I serial device server is a converter that converts asynchronous ports RS-422/485 to TCP/IP. It is an independent intelligent device with CPU, embedded OS, and full TCP/IP protocol. The bid-direction transparent transmission between RS-422/485 and Ethernet enables RS-422/485 serial devices access in Internet immediately.
Hardware
● UNIX Fixedtty working mechanism
● 16 serial ports, allows to connect with terminal, Modem, bar code machine, cash register, ISDN, terminal adapter, serial printer, Modem
● With Reset button
● Ethernet port 10/100M transmission rate, auto negotiation
● Provides with full signal: DCD, Rx, Tx, DTR, DSR, RTS, CTS, GND
● 32 bits embedded 100M CPU, 8M RAM
● LED indication for working status
Software
●Supports ARP, IP, ICMP, UDP, TCP, PPP, HTTP, TELNET, DNS, DHCP, PAP, CHAP protocols
●Supports Windows extend serial port mode
●Supports UNIX host log in mode
●Supports DNS
●Supports ARP
●Supports MODBUS TCP/RTU
●Supports terminal server configuration
●Supports software upgrade
●Supports status monitoring
●Supports MODEM connection
Specification
Number of serial port: 16
CPU: 32bit 100MHz
RAM: 8M
Baud rate: 50-460800bps
Check bits: None, Odd, Even, Mark, Space
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Flow control: RTS/CTS, XON/XOFF
Serial port: RJ-45
Serial port protection: +-15KV ESD protection
Signal:
RS-422: TXD+/RXD+/TXD-/RXD-/GND
RS-485: Data+/Data-
Network port transmission rate: 10/100M, auto negotiation
Network port: RJ-45
Port protection: built-in 2KV electromagnetic isolation
Software
Protocol: ARP\IP\ICMP\UDP\TCP\PPP\HTTP\TELNET\DNS\DHCP\PAP\CHAP
Virtual COM: Windows NT/2000/XP/7/8/10
Environment
Operating temperature: -25℃-70℃
Operating humidity: 5%-95%(non-condensing)
Storage temperature: -40℃-85℃
Storage humidity: 5%-95%(non-condensing)
Power: AC220V
Housing: metal

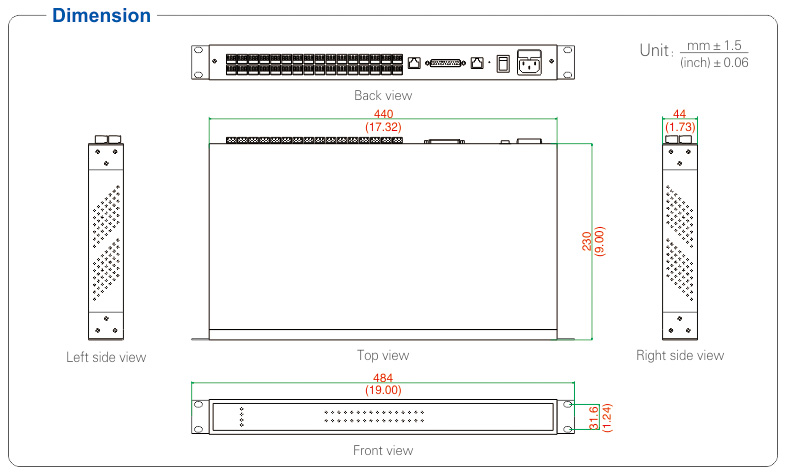

Dimension: 19’’ inch, 1U
