Product name：
Ethernet to 2-port CANFD Converter
Model： UT-6502-FD
UT-6502-FD is a high-performance CANFD-bus communication converter with
integrated 2 CAN interfaces and 1 Ethernet port. The converter supports
interoperability between 10M/100M Ethernet networks and CAN-bus
communication rates of 5Kbps to 5Mbps, further expanding the application
range of CANFD-bus and Ethernet. UT-6502-FD converter provides a web
configuration interface, allowing users to flexibly set the operating
parameters. Designed to high industrial standards; isolation between
communication interfaces and systems, with anti-interference and surge
protection capabilities, widely used in industrial control and data
communication systems.
l Achieves bidirectional data transfer between CANFD-bus and the network
l Supports CAN2.0, CANFDBUS protocols
l Integrated 2 CANFD-bus communication interfaces, supporting communication rates from 5Kbps to 5Mbps

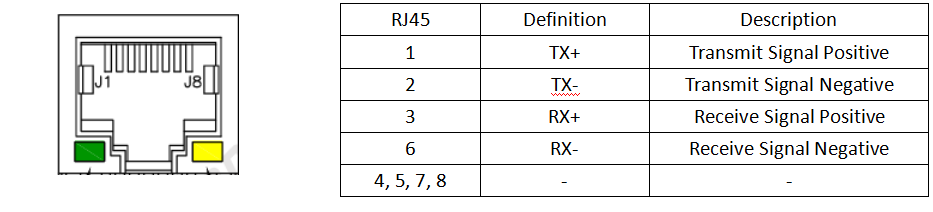

l Integrated 1 10M/100M Ethernet interface
l Operating Voltage: 12-36V DC
l Operating Current: ≤ 300mA@12V
l Operating Temperature: -40~+85℃
l Storage Temperature: -40~+85℃
l Operating Humidity: 5~95% (non-condensing)
l Storage Humidity: 5~95% (non-condensing)
l Isolation Voltage: 1000VDC
l Electrostatic Protection: Three levels
