Product name:

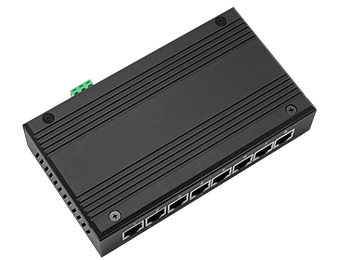

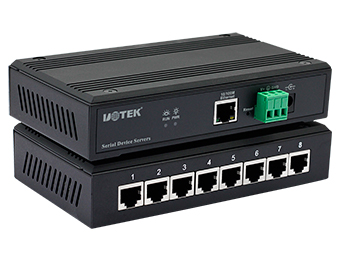

UOTEK Modbus Gateway

Model: UT-6808-GW

● It features a metallic casing and is designed for various installation methods, making it suitable for industrial control applications.
● Wide power input range (12~48VDC) suitable for different power supply systems in different settings.
● Up to 8 RS232/RS485/RS422 ports, satisfying the needs of multiple serial port applications.
● Supports a wide range of baud rates from 300-921600bps, applicable for communication between different devices.
● Supports multiple operating modes: ModbusRTU Master/Slave, ModbusTCP Master/Slave.
● Supports web firmware upgrade for easy customization in different circumstances.
    UT-6808-GW provides Modbus gateway functionality, which can convert data from multiple cascaded Modbus RTU slaves into Modbus TCP messages, supporting access control by multiple ModbusTCP masters. It can also convert data from multiple ModbusTCP slaves into ModbusRTU messages, supporting access control by multiple ModbusRTU masters.
Model: UT-6808-GW
Processor: 32bit 400MHZ
Memory: 128M

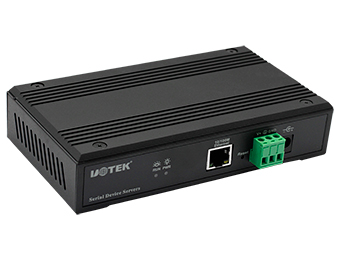

Ethernet interface: 10/100M (embedded with 1.5KV electromagnetic isolation) adaptive MDI/MDI-X Ethernet interface, RJ45 interface
Serial port: RS-232, RS-485, RS-422

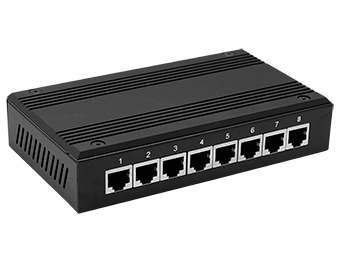

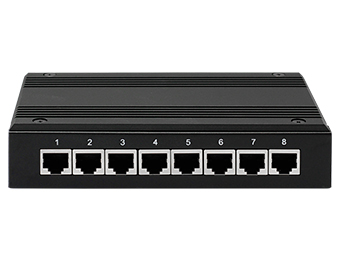

Port: 8×RJ45

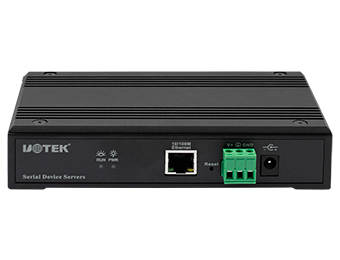

Indicator light: Power indicator light PWR, operation indicator light RUN
Power interface: DC-005 DC socket or 3-pin 5.08 terminal can be used for power supply, and it has built-in reverse polarity protection to prevent damage to the equipment caused by positive and negative connections being reversed.
Power supply range: DC12~48V
Function button: One factory reset button RESET
Maximum power consumption: 4.2W
Casing: Metal casing, protection level IP30
Operating environment: Storage temperature: -40~85°C
Operating temperature: -40~85°C
Relative humidity: 5%~95% (non-condensing)
Dimensions L×W×H: 161mm x 91mm x 37mm (excluding mounting components)
Net weight: Weight: 350g
