Product name:

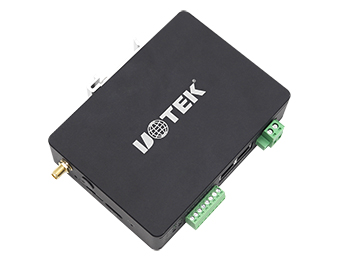

UOTEK Edge Computing Gateway

Model: EG9450

● Designed with NXP industrial-grade ARM chips, suitable for harsh working environments in industrial fields.
● Fanless design, durable and able to withstand harsh environmental conditions in industrial fields.
● Protection level up to IP40, with the shell and system safety isolation, suitable for industrial control applications.
● Low power consumption, supports +9~24VDC wide voltage power supply, suitable for various on-site power supply methods.
● Embedded watchdog technology, automatic recovery from faults, ensuring stable equipment operation.
● Multi-level link detection and anti-disconnection mechanism, ensuring permanent online equipment.
● External antenna design, enhances wireless signal, ensuring stable operation of various on-site networks.
The EG9450 series is a powerful edge computing gateway with strong edge data acquisition capabilities. It can achieve global remote data collection, support data acquisition of mainstream industrial controllers, and report to cloud servers through dashboard, HMI, bulletin board and other functions for configuration monitoring. The platform includes the bottom-level device connection, data parsing, and upper-level data calculation and analysis. You can obtain common IoT cloud services such as connection, storage, analysis, display, reminder, feedback, etc. without developing any code.

EG9450 series




EG9450-FS


Specification Name:

Hardware Specifications:


Network Access

Full Netcom 4G

Ethernet

LORA (optional)


CPU

NXP IMX6U Cortex-A7 600-800MHz


NAND FLASH

512MB


DRAM Capacity

512MB


Ethernet

2x10M/100Mbit/s Adaptive ports


SD Expansion

1x TF-SD, maximum support 16GB


Industrial Serial Interface

1x RS232

2x RS485


RS232/RS485

LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B39/B40/B41 WCDMA:

B1/B8 TD-SCDMA: B34/B39 CDMA: BC0 GSM: 900/1800MHz


4G

<5W


Rated Power

+9V~24VDC


Power Supply Range

With reverse protection and lightning surge protection


Power Protection

Can restore device parameters to factory settings


Reset Button

-40~85℃


Operating Temperature

-45~125℃


Storage Temperature

1% ~ 95% RH (non-condensing)


Environmental Humidity

Natural air cooling


Cooling Method

LxWxH=120mm×92mm×30mm (excluding antenna)


Size

245g


Weight

Aluminum alloy, protection level up to IP40


Enclosure

Rail-mounted

EG9450 series




EG9450-FS


Specification Name:

Software Specifications:


Alarm Push

Supports client push, SMS push, WeChat public account push


Data Monitoring

300 points support scheduled upload


Edge Computing

Local calculation


Industrial Protocol

Supports a variety of mainstream industrial protocols, including Siemens, Omron, Mitsubishi, AB, Delta, Huichuan, Yonghong, Xinjie, Yokogawa and other mainstream PLCs; instruments and meters such as DLT645-2007, DTSU6606


Management and Maintenance

Supports firmware upgrades, provides upper computer configuration of equipment, cloud point configuration, edge computing editing.
