Product name:

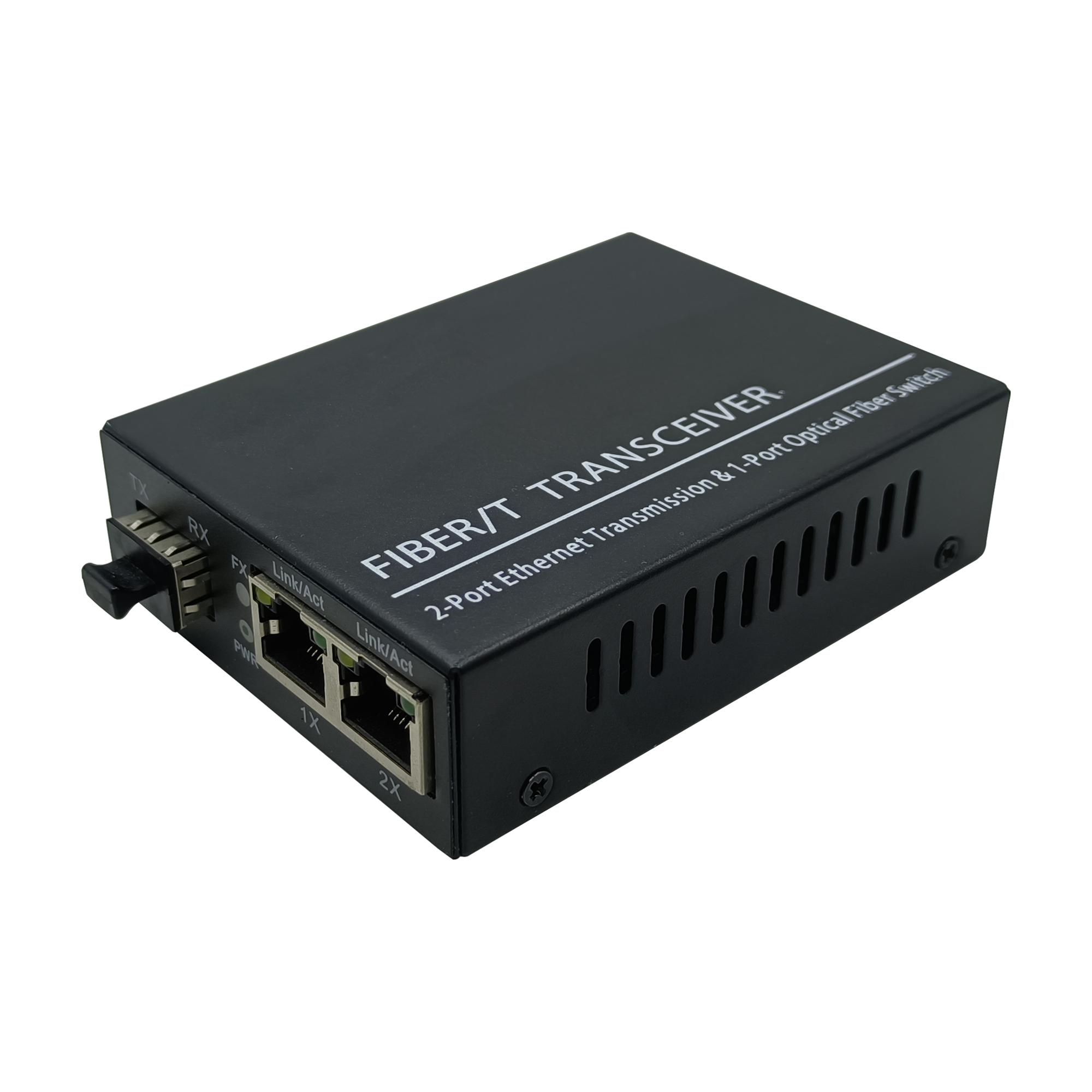

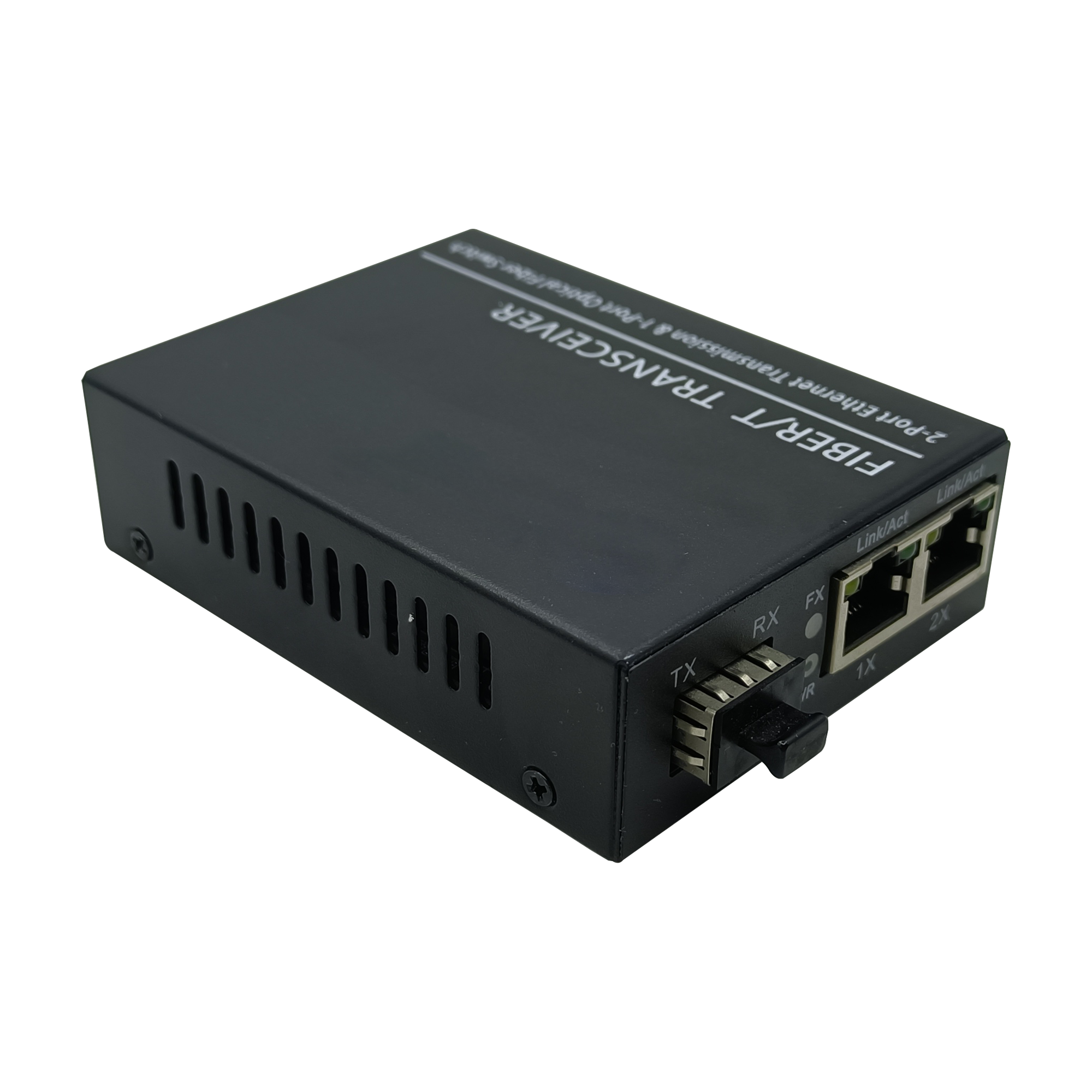

UOTEK UT-N60FS12 2-port 100M network fiber optic transceiver

Model: UT-N60FS12 series

<
● Support one 155Mbps optical port and two 10/100Mbps adaptive electrical ports;
● Adopt high-quality optoelectronic integrated modules to provide good optical and electrical characteristics to ensure reliable transmission and long life;
● Support MAC address automatic learning and automatic update function and the operation mechanism of data storage and forwarding;
● Support flow control mode: Full-duplex adopts IEEE 802.3X, half-duplex adopts back pressure method;
● Provide status indicator light, external power supply (output 5V~50HZ 2A);
●Adopt a unique integrated circuit solution, the chip temperature rise is low, get rid of the heat dissipation system, realize flow control, and reduce broadcast storms
● Ultra-low power consumption less than 2.5W (Input: AC140~260V), low heat generation, and can work stably for a long time;
UT-N60FS12 series is a 100M adaptive Fast Ethernet fiber optic transceiver, supporting one 155Mbps fiber optic interface and two 10/100 Base-TX adaptive Ethernet RJ45 interfaces. The product design conforms to the Ethernet standard, with lightning protection and anti-static protection measures, a wide range of operating temperature from -20°C to 70°C, and stable and reliable performance. The device can be widely used in various industries such as intelligent buildings, smart cities, intelligent transportation, telecommunications, security, electric power and coal.
<
Interface
RJ45 Port: 2*10/100base-TX RJ45(auto-MDI/MDI-x)
Fiber Port: 1*100Base-FX port (optional SC, ST, FC, SFP interface)

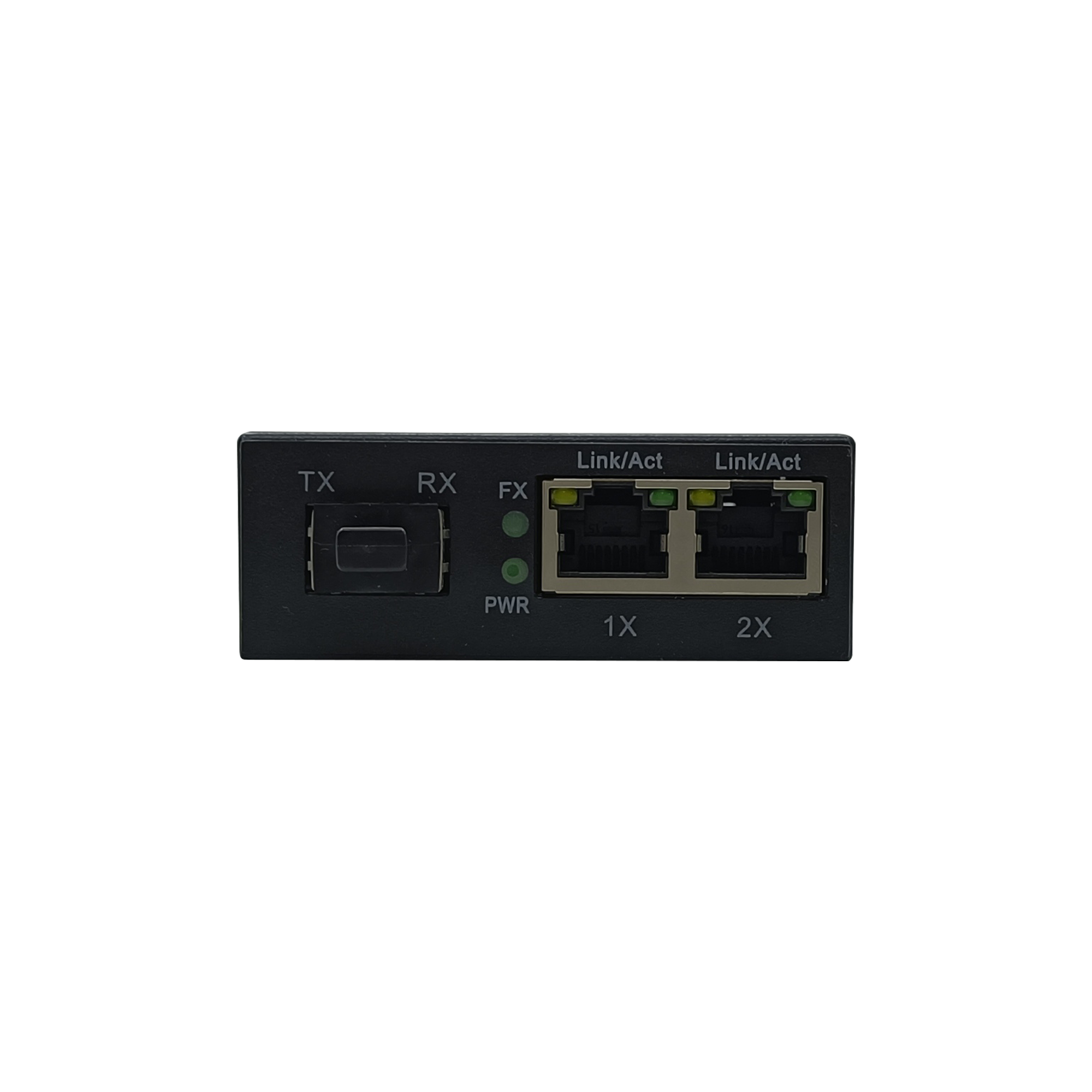

LED indicators
Power Indicator: PWR indicator light (On: The power supply is working normally, off: No power supply or failure)
Electrical Port Mode Indicator: Yellow light LINK/ACT (On: Electrical port connection is normal)
 Blue light LINK/ACT (Flash: Electrical port communication is normal)
Optical Port Status Indicator: FX indicator light (On: Optical port connection is normal)
Transmission distance
CAT5 Twisted Pair: 100m
Multimode Dual Fiber: 550m
Single-Mode Dual-Fiber: 25/40/60/80/100Km
Single Mode Single Fiber: 25/40/60/80Km
Exchange performance
Transmission Method: Store and forward
MAC Address: 1k
Cache: 1Mbit
Switching Delay: <10us
Power requirements

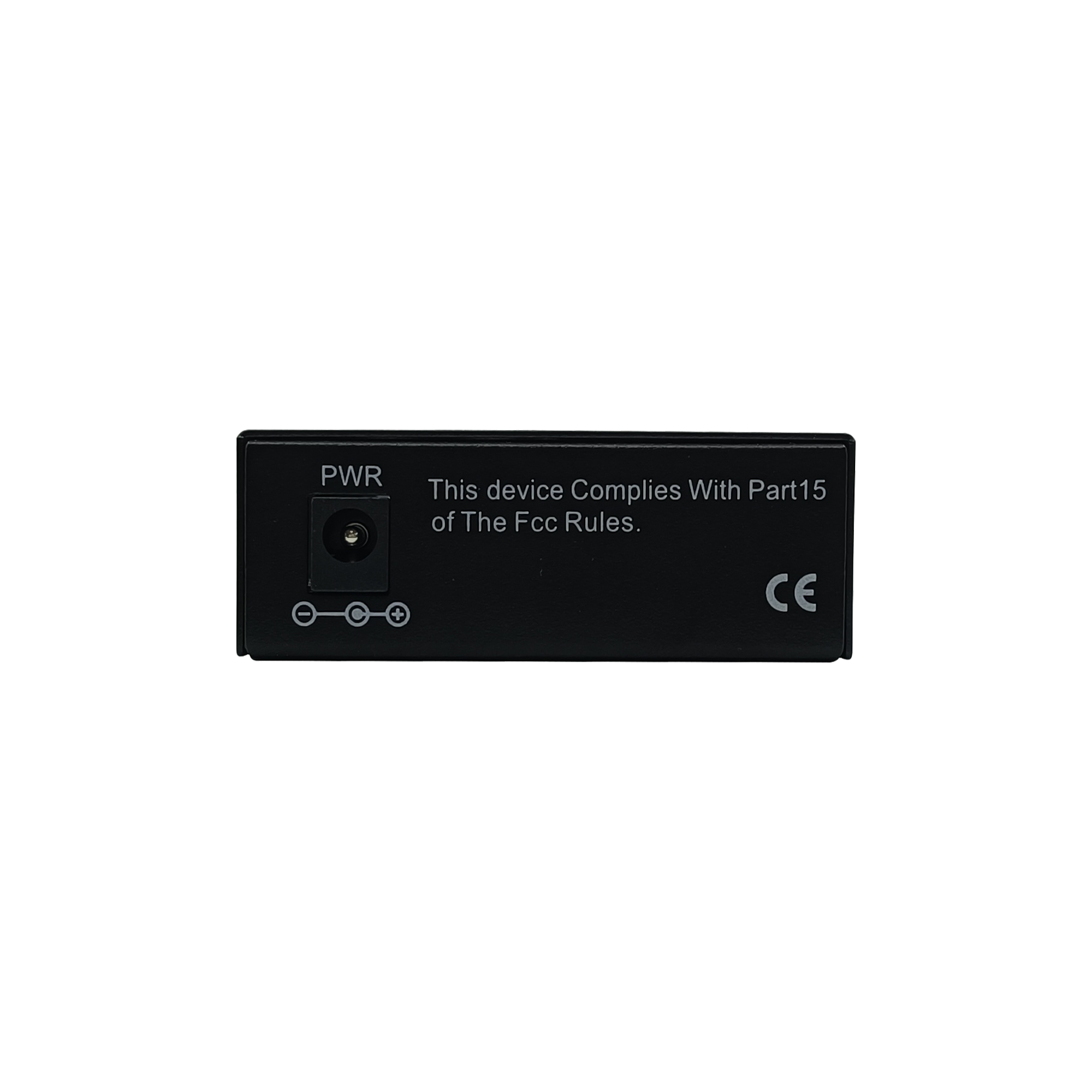

Power Supply: DC 5V2A
Power Consumption: <2.5W
Operating environment
Operating Temperature: -20~70℃
Operating Humidity: -20~70℃
Storage Temperature: 5%~90%
Storage Humidity: 5%~90% (no condensation)
Mechanical characteristics
Dimensions: 93*70*25mm (L * W * H)
Weight: 0.25kg (bare metal)
Installation Method: Desktop installation
Heat Dissipation Method: Natural cooling, no fan
