Product name:

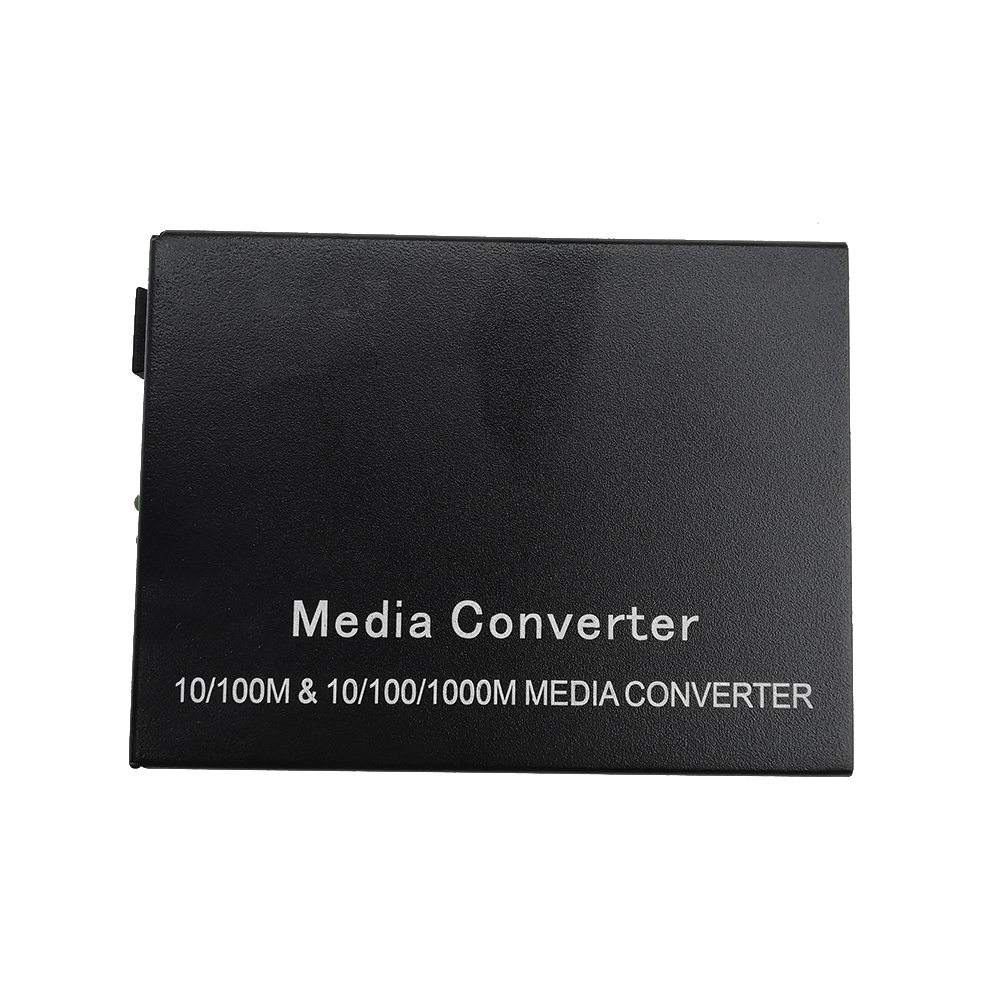

UOTEK UT-N60FS11 1-port 100M network fiber optic transceiver

Model: UT-N60FS11 series

Adopt high-quality opto-electronic integrated modules to provide good optical and electrical characteristics, to Ensure reliable data transmission and long lifecycle.
Support one 155Mbps optical port and one 10/100Mbps adaptive electrical port;
Adopt high-quality optoelectronic integrated modules to provide good optical and electrical characteristics to ensure reliable transmission and long life;
Support MAC address automatic learning and automatic update function and the operation mechanism of data storage and forwarding;
Support flow control mode: Full-duplex adopts IEEE 802.3X, half-duplex adopts back pressure method;
Provide status indicator light, external power supply (output 5V~50HZ 1A);
Adopt a unique integrated circuit solution, the chip temperature rise is low, get rid of the heat dissipation system, realize flow control, and reduce broadcast storms
Ultra-low power consumption less than 2.5W (Input: AC140~260V), low heat generation, and can work stably for a long time.
    UT-N60FS11 series is a 100M self-adaptive Fast Ethernet fiber optic transceiver, supporting one 155Mbps fiber optic interface and one 10/100Base-TX self-adaptive Ethernet RJ45 interface. The product design conforms to the Ethernet standard, with lightning protection and anti-static protection measures, a wide range of operating temperature from -20°C to 70°C, and stable and reliable performance. The device can be widely used in various industries such as intelligent buildings, smart cities, intelligent transportation, telecommunications, security, electric power and coal.
RJ45 Port: 1*10/100base-TX RJ45(Auto-MDI/MDI-x)
Fiber Port: 1*100Base-FX port (optional SC, ST, FC, SFP interface)

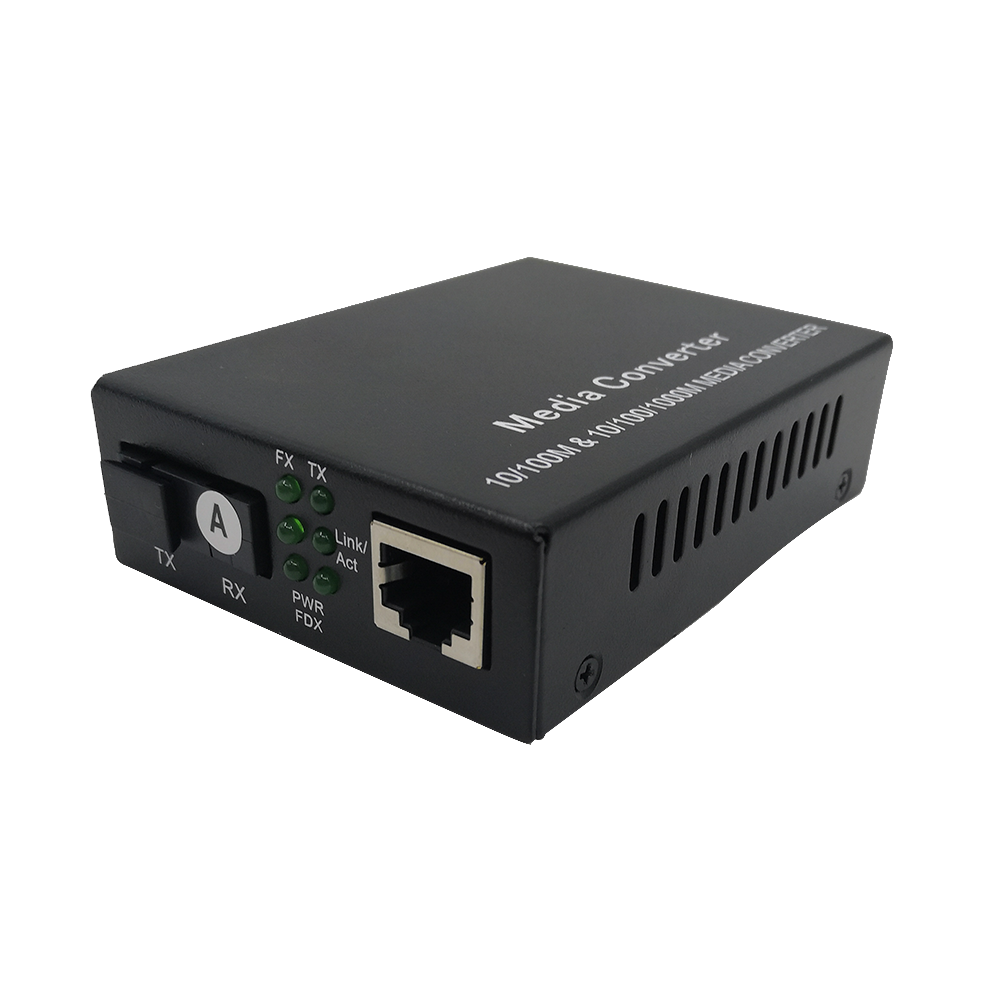

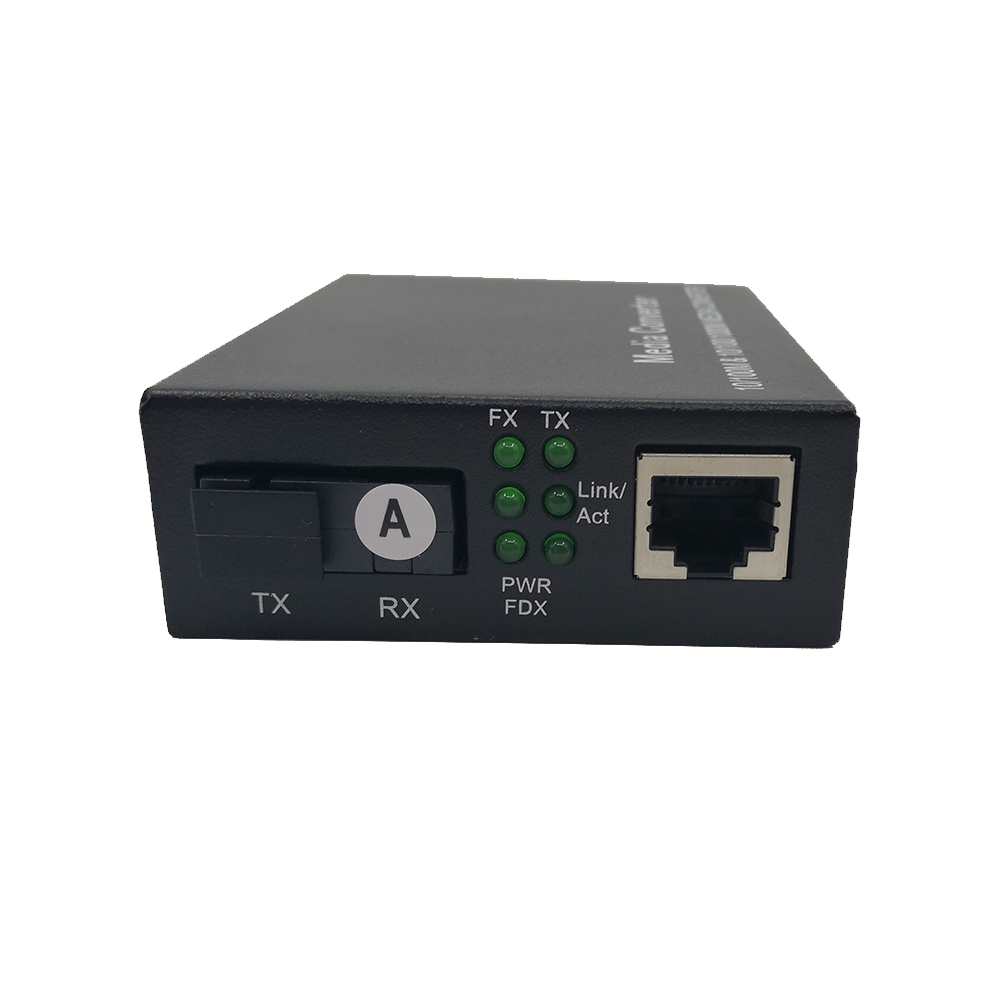

LED Indicators
Power Indicator: PWR indicator light (on: the power supply is working normally, off: no power supply or failure)
Optical Port Status Indicator: SD LINK/ACT indicator (on: the optical port connection is normal, flashing: the optical port communication is normal)
Optical Port Rate Indicator: FX indicator (On: the rate of the optical port is 100Mbps)
Electrical Port Rate Indicator: 100 indicator lights (On: the electrical port rate is 100Mbps)
Electrical Port Mode Indicator: FDX LINK/ACT indicator (On: full-duplex working mode, off: half-duplex working mode)
Electrical Port Status Indicator: TX indicator (On: electrical port connection is normal)
Transmission Distance
CAT5 Twisted Pair: 100m
Multimode Dual Fiber: 550m
Single-Mode Dual-Fiber: 25/40/60/80/100Km
Single Mode Single Fiber: 25/40/60/80Km
Exchange Performance
Transmission Method: store and forward
MAC Address: 1k
Cache : 1Mbit
Switching Delay: <10us
Power Requirements
Power Supply: DC 5V1A
Power Consumption: <2.5W
Operating Environment
Operating Temperature: -20~70℃
Operating Humidity: -20~70℃
Storage Temperature: 5%~90%
Storage Humidity: 5%~90% (no condensation)
Mechanical Characteristics
Dimensions: 93*70*25mm (L * W * H)
Weight: 0.2kg (bare metal)
Installation Method: desktop installation
Heat Dissipation Method: Natural cooling, no fan
