Product name：
UOTEK UT-6001B 10/100M to 1 Port RS-232/485/422 Serial Device Server
Model： UT-6001B
● With metal housing and multiple installation design, suitable for industrial control site applications.
● UT-6001B serial device server provides a serial to network function that converts RS-232/485/422 serial ports into TCP/IP network interfaces, enabling transparent bi-directional data transmission between RS-232/485/422 serial ports and TCP/IP network interfaces. Enables serial devices to immediately have TCP/IP network interface functionality.Wide power input (12~57.6VDC), suitable for different on-site power supply methods.
● RS232\RS485\RS422 serial port can be set to work in one of the serial ports through software settings.
● Support a wide baud rate range of 300-921600bps, suitable for applications between different devices.
● Support multiple operation modes: VCOM, MCP, TCP SERVER, TCP CLIENT, UDP, Modbus TCP SERVER, Modbus TCP CLIENT.
● Support upgrade web firmware upgrade, convenient for special applications in different scenarios.
UT-6001B serial device server provides a serial to network function that converts RS-232/485/422 serial ports into TCP/IP network interfaces, enabling transparent bi-directional data transmission between RS-232/485/422 serial ports and TCP/IP network interfaces. Enables serial devices to immediately have TCP/IP network interface functionality.
CPU: 32bit 120MHZ
RAM: 256K
Ethernet interface: 10/100M (built-in 1.5KV electromagnetic isolation) adaptive MDI/MDI-X Ethernet interface, interface mode RJ45
Serial Standard: RS-232, RS-485, RS-422
Serial RS-232 port: DB9 male socket (pin type)
RS485/RS422 port: 4pin 3.81 plug-in terminal block

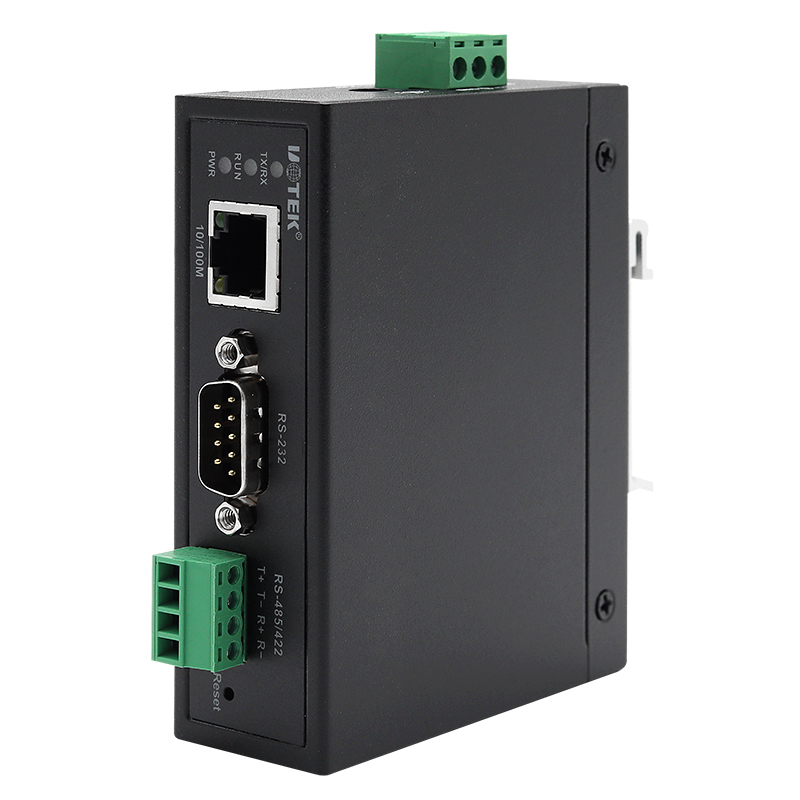

Serial RS-485/422 port: Power indicator PWR, running indicator RUN, serial port transceiver indicator DATA.

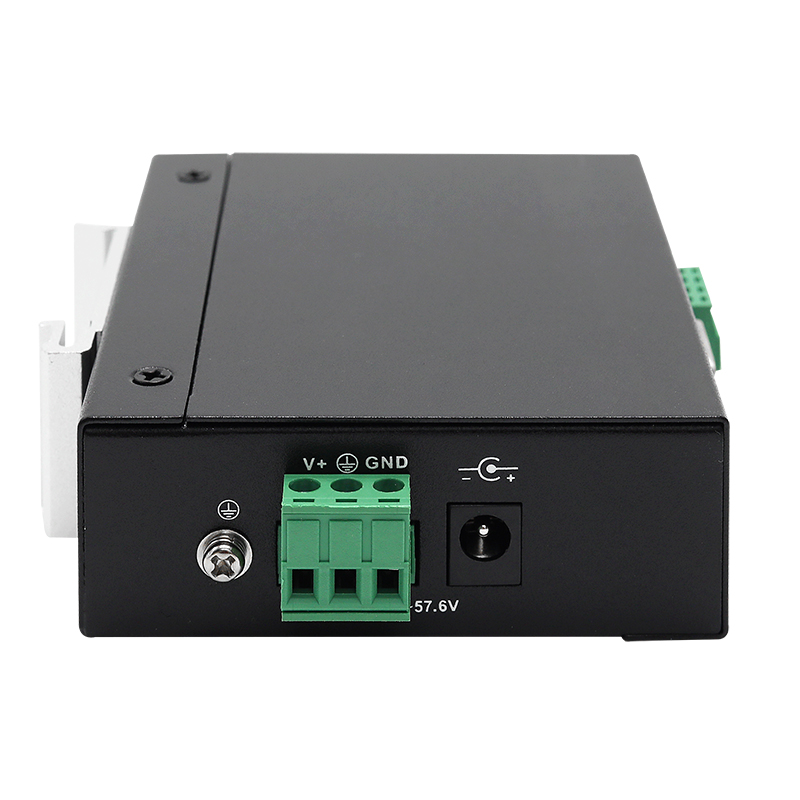

Power connector: DC-005 DC socket or 3Pin 5.08 terminal power supply mode, built-in anti-reverse connection protection, to avoid damage to the equipment due to wrong connection of positive and negative
Power range: DC12~57.6V
Function buttons: 1 factory reset button RESET
Max. power consumption: 12V@50mA
Housing: Metal housing, protection level IP30

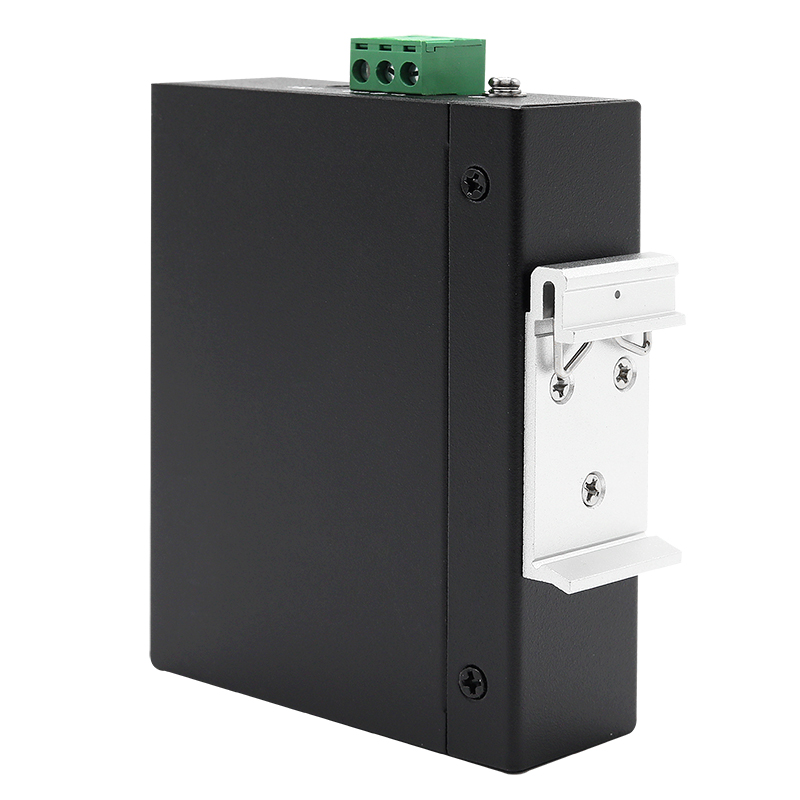

Installation: Default rail type installation, fixed plate installation (wall-mounted optional)
Operating environment: Storage temperature: -40~85°C
Operating temperature: -40~85°C
Relative humidity: 5% ~95% (non-condensing)
Altitude: 0~4000m
Dimensions L×W×H: 100mm x 80.8mm x 30mm (without mounting parts)
Net. Weight: 248g
