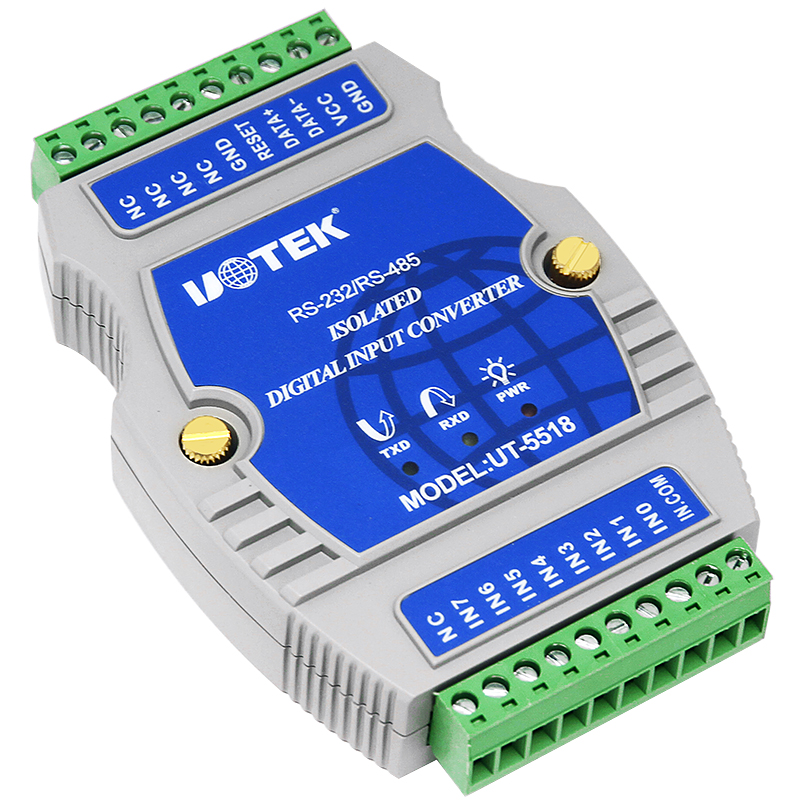

UOTEK Digital 8-channel optical isolated wet contact I/O input module

Model: UT-5518

 Input channels: 8 channels

 Communication protocol: Modbus-RTU

● Baud rate: 1200/2400/4800/9600/19200/38400/57600/115200bps

 Data format: 1, 8, N, 1

 Address range: 1~247

● Communication interface: RS485/232

● Supply voltage: 9 ~ 30V DC

● Operating current: 300mA@9V max

 Opto-isolated voltage input: 0 ~ 24V

 Support wet and dry node input

 Isolation voltage: 2500V DC

 Operating temperature: -40 ~ 85°C

 Storage temperature: -40 ~ 85°C

● Relative Humidity: 5 ~ 95%RH, non-condensing

   The UT-5518 opto-isolated data parallel I/O controller is an 8-bit, 8-channel data input module, with each data input channel resembling several computer interfaces. The module can be remotely controlled by a series of commands via Modbus-RTU protocol, and the module and the host computer communicate via RS-485/232 serial bus using command data. The communication baud rate is software settable and can reach a maximum transmission rate of 115,200bps.


Pin Definition


Interface Name

Description

Interface Name

Description

GND

Common Ground

COM

Voltage input common

VCC

Power input positive

COM

Voltage input common

DATA-

RS485 B-terminal/RS232 RX

IN1

Voltage input 1

DATA+

RS485 A terminal/RS232 TX

IN2

Voltage input 2

RESET

Reset

IN3

Voltage input 3

GND

Signal Ground

IN4

Voltage input 4

NC

Hanging

IN5

Voltage input 5

NC

Hanging

IN6

Voltage input 6

NC

Hanging

IN7

Voltage input 7

NC

Hanging

IN8

Voltage input 8
