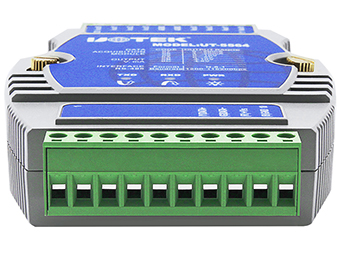

UOTEK 4-channel analog output module

Model: UT-5564A

● Output channels: 4 channels

● Baud rate: 1200/2400/4800/9600/19200/38400/57600/115200 bps

 Data format: 1, 8, N, 1 / 1, 8, E, 1

● Address range: 1~247

 Interface type: RS485

● Voltage output: -10V ~ +10V

● Current output: 0 ~ 20mA

● Accuracy: ±0.5% of FSR

 Current load resistance: 1KΩ (external 24V DC)

 Isolation voltage: 3000V DC

 Supply voltage: +12 ~ +30V DC

   The UT-5564A is a remote analog output and control module that provides D/A digital input/analog output functions and supports -10V ~ +10V DC voltage signal and 0 ~ 20mA DC current signal output. The module can be remotely controlled by a series of commands via Modbus RTU protocol, and the module and the host computer communicate via RS-485 serial bus using command data form. The communication baud rate is software settable, and the maximum transmission rate can reach 115,200 bps.


 Output channels: 4 channels

● Communication protocol: Modbus-RTU, support 03, 06, 16 commands

 Baud rate: 1200/2400/4800/9600/19200/38400/57600/115200 bps

 Data format: 1, 8, N, 1 / 1, 8, E, 1

● Address range: 1~247

● Interface type: RS485

● Voltage output: -10V ~ +10V

 Current output: 0 ~ 20mA

 Accuracy: ±0.5% of FSR

● Current load resistance: 1KΩ (external 24V DC)

● Isolation voltage: 3000V DC

 Supply voltage: +12 ~ +30V DC

 Power consumption: ≤2.5W

 Operating temperature: -40 ~ 85°C

 Storage temperature: -40 ~ 85°C

● Relative humidity: 5 ~ 95%RH, non-condensing
