Product name:

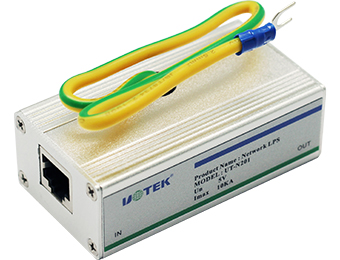

UOTEK Network lightning protector

Model: UT-N201

 Rated operating voltage Un5V

● Max. DC operating voltage Uc6V

 Max. AC operating voltage Uc4.2V

 Rated operating current IL0.12A

 Nominal discharge current (8/20 us) In5KA

 Max. discharge current In10KA

● Limiting voltage Upl≤12V

● Series impedance characteristics of the line Ro 10 Ohm

      This lightning surge protector refers to the national standard IEC61643-21:2000 / GB/T18802.21 design. With the development of the national economy, the development of the Internet era is increasingly new, the rapid progress in the development of Internet technology. However, it cannot ignore the existence of this or that problem in the development, safety issues are put in the first place. Daily life, lightning damage to electronic equipment is the most serious, the threat of static electricity is also everywhere, in order to the majority of users have a safer use of the environment, the call to improve the reliability of equipment requirements are becoming stronger.

      Applicable to control signals, computer network signals, hubs, network cards, network switches, Modem, fax, data communications, etc. as one of the monitoring system over-voltage precise protection from damage caused by induction overvoltage, operating overvoltage and electrostatic discharge.


 Rated operating voltage Un:5V

● Max. DC operating voltage Uc:6V

 Max. AC operating voltage Uc:4.2V

 Rated operating current IL:0.12A

 Nominal discharge current (8/20 us) In:5KA

 Max. discharge current In:10KA

● Limiting voltage Upl:≤12V

● Series impedance characteristics of the line Ro :10 Ohm


 Capacitance value between line and line Cll≤3pF

● Capacitance value between line and ground Cpe≤3pF

 Response time ta<1 ns

● Operating temperature range: -4085°C

 Test standard: IEC61000-4-5

Test level: X

 Insulation resistance: >1MΩ

 Insertion loss (dB): ≤0.5 dB

● Enclosure protection level: IP30

● Dimension: 25 x 40 x 75mm

 Enclosure material: shielded metal aluminum

● Wiring form: terminal block (RJ-45)

 Anti-static Level:  4

● Transmission rate (BPS): 500M
