Product name:

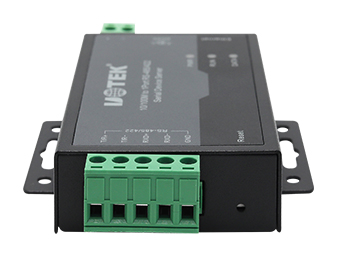

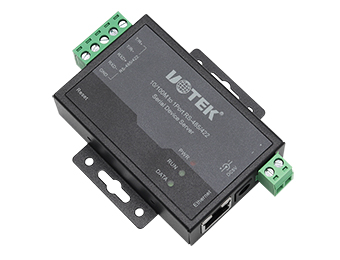

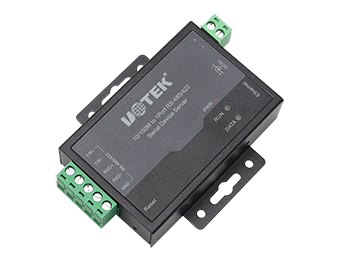

UOTEK 10/100M to 1 Ports RS-232/485/422 Serial Device Server

Model: UT-6311M/UT-6311C

Bidirectional data transmission over Ethernet and RS-232/485/422/TTL

Integrated 1 RS-232/485/422/TTL communication interface, supporting 300bps-921600bps communication rate

● Integrated 1 10M/100M Ethernet interface

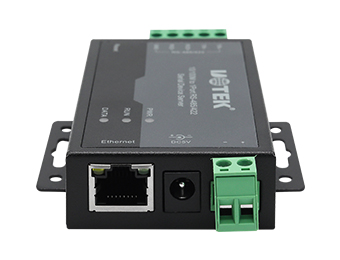

● Power supply interface: DC-JACK, 5.08-2P Phoenix terminal

● Electrostatic protection: air 4kV, contact 4kV

● Surge protection: Serial port 600W


UT-6311 series serial device server, also called terminal server or serial server, is a converter between asynchronous serial port RS232/422/485 and Ethernet. It is a standalone intelligent device with CPU and full TCP/IP protocol stack. It accomplishes transparent data transfer between RS232/422/485 and Ethernet in both directions, allowing RS232/422/485 serial devices to connect to the network immediately. The converter provides a web configuration interface that allows the user to set the converter's operating parameters flexibly. The small size and industrial-grade high standard design make it easy for customers to install and use; it is widely used in industrial communication and data conversion systems.

>>Main Functions & Features

● Bidirectional data transmission over Ethernet and RS-232/485/422/TTL

● Integrated 1 RS-232/485/422/TTL communication interface, supporting 300bps-921600bps communication rate

● Integrated 1 10M/100M Ethernet interface

● Power supply interface: DC-JACK, 5.08-2P Phoenix terminal

 Parity bit:None,Odd,Even

● Data bit 5, 6,7,8

 Stop bit 1, 1.5, 2

● Flow control RTS/CTS, XON/XOFF

 Working voltage: DC 5V±5%

 Working current: 80mA@5V

● Operating temperature: -40~85°C

 Storage temperature: -40~85°C

● Operating humidity: 5~95% (no condensation)

 Storage humidity: 5~95% (no condensation)

● Electrostatic protection: air 4kV, contact 4kV

 Surge protection: Serial port 600W

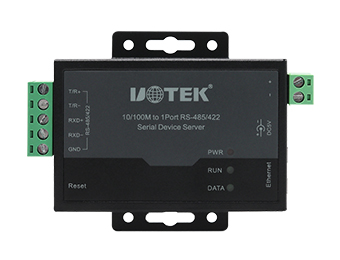

>> Indicator Light

● PWR: red, power indicator; long light when power supply is normal.

RUN: green, system operation indicator; flashes when the system is running normally.

DATA: green, communication indicator; light is on when the serial port sends or receives data; off when sending or receiving is completed
