Product name:

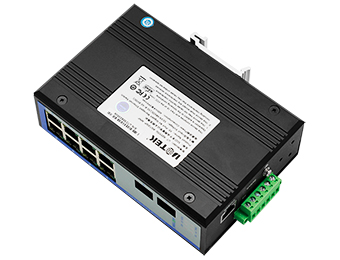

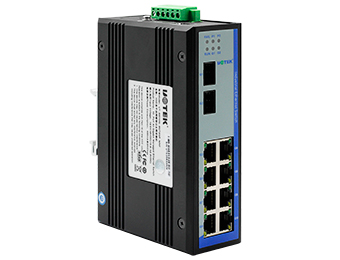

UOTEK 10-Port Full Gigabit Managed Ethernet Switch

Model: UT-62010G Series

 Data control: support 802.3X full duplex flow control, support network storm suppression

● Redundant network: support STP/RSTP/MSTP, support UT-Ring ring function to ensure the stability of the network

 Multicast management: Support IGMP Snooping V1/V2/V3

 VLAN: Support IEEE 802.1Q VLAN, effectively isolate the broadcast domain

● Link aggregation: Support link static/dynamic aggregation to provide perfect bandwidth utilization

● QOSSupport COS\DSCP, 4 queues, support WRR\SP scheduling mode

● Security management: Support ACL access control list, support 802.1X, support user hierarchy management

● Management functionsupport CLI, WEB, SNMP management mode

 Monitoring and maintenance: support port mirroring, interface status monitoring, log management

● Alarm function: support power, port, UT-Ring abnormal state relay output alarm function

UT-62010G series is a managed industrial Ethernet switch, supporting 2 Gigabit optical ports and 8 Gigabit electrical ports, supporting 1 console port and providing CLI management; supporting Ethernet Layer 2 protocols required in industrial sites to ensure the stability of communication networks; this series switch adopts low power consumption and fanless design to ensure no noise interference, while supporting -40~85°C operating temperature With low power consumption and fanless design, it ensures no noise interference and supports -40~85°C operating temperature and good EMC performance to ensure stable operation in harsh industrial environment, providing a safe and reliable solution to build a fast and stable network terminal access network for industrial applications such as factory automation, intelligent transportation and video surveillance.


>>Protocol Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,

IEEE 802.1D , IEEE 802.1W, IEEE 802.1s , IEEE 802.3x , IEEE 802.1Q , IEEE 802.1p , IEEE 802.1x IEEE 802.1Q , IEEE 802.1p, IEEE 802.1x



>>Interfaces

Fiber optic interface: 1000Base-X port (SC/FC/ST/SFP slot)

RJ45 interface: 10/100/1000Base-T(X) port, auto-MDI/MDI-X

Console interface: RS-232 (RJ45)

LED indicators: P1, P2 power indicator, FAIL power failure light, the RUN indicator, G1, G2 fiber indicator, RJ-45 indicator



>>Transmission Distance

Cat.5e: 100m

Fiber Patch Cord

Single-mode: 1,310nm  20/40/60Km

            1,550nm  80/100/120Km

Multi-mode: 1,310nm 2Km



>>Switching Performance

Forwarding rate: 1,488,095pps

Transmission mode: store and forward

MAC address size: 16K

Cache size: 2Mb

Backplane bandwidth: 22G

Max. frame length: 10KB


>>Power Requirement

Voltage input:

with optional 12/24/48VDC(10.8~52.8VDC) Redundant inputs support reverse connection protection



>>Power consumption

Max. input power consumption 400mA@24Vmax



>>Mechanical Characteristics

IP protection level: IP40

Installation: DIN-Rail / Wall Mounted



>>Mechanical Dimension

Dimension (W x H x D): 150mm x 47.6mm x 100mm

Weight: 850g

Packaging dimension: 250mm x 205mm x 55mm


>>Operating Environment

Operating temperature: -40 ~ 85 °C

Storage temperature: -40 ~ 85°C

Relative humidity: 0~95% (non-condensing)



>>Industrial Standards

EMI

FCC Part 15CISPR (EN55022) class A

EMS

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC(EN)61000-4-8

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)
