Product name:

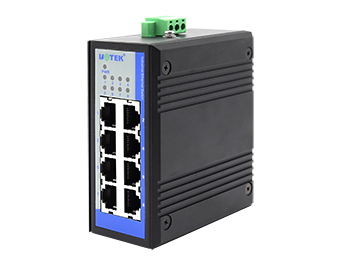

UOTEK 100M 8-port Unmanaged Ethernet Switch

Model: UT-6408C

Adopt high quality opt electric integration modules to provide good optical and electrical characteristics, ensure reliable data transmission and long lifecycle

 Supports full-duplex and half-duplex, auto negotiation

● Auto-10/100Mbps

 Fully automatic recognition of network interface, no need to manually operate switches

 Plug and play for easy access

● Operating temperature: -20~75°C

 Input voltage: 12/24/48VDC(10.8-52.8VDC), support reverse connection protection

UT-6408C is a 5-port/8-port 100-gigabit unmanaged Ethernet switch that provides AC/DC input positive/reverse protection to prevent burnout of the instrument. It has a compact design and supports standard DIN-rail mounting, it is easy to install on any industrial network.


>>Protocol Standards

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX



>>Interfaces

RJ45 ports: 8 10/100Base-T (X) ports, auto-detection, full/half duplex, auto MDI/MDI-X



>>LED indicator light

PWR power light, network indicator



>>Power Requirement

Input voltage: 12/24/48VDC(10.8~52.8VDC)

Interface terminal: 1 pluggable 3-pin terminal

Overload protection: Support

Reverse connection protection: Support



>>Consumption

Power consumption: 100mA@24Vmax



>>Switching Performance

Forwarding rate: 148810pps

Transmission mode: store and forward

MAC address size: 1K

Cache size: 448Kb

Backplane bandwidth: 1.6G



>>Mechanical Characteristics

IP protection level: IP40

Installation: DIN-Rail Mounted



>>Mechanical Dimension

Dimension (W x H x D): 100mm x 85mm x 47.2mm

Weight: 0.85Kg

Packaging dimension: 190mm x 185mm x 65mm



>>Operating Environment

Operating temperature: -20~75°C

Storage temperature: -40~85°C

Relative humidity: 0~95% (non-condensing)



>>Industrial Standards

EMI:

FCC Part 15 Subpart B classA͘EN55022 class A

EMS:

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC(EN)61000-4-8

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)

IEC 60068-2-6(Vibration)
