UOTEK 4-Port Gigabit Media Converter

Model: UT-2604GC

 Adopt high quality optoelectronic integrated modules to provide good optical and electrical characteristics, ensure reliable data transmission and long lifecycle

 Supports full-duplex and half-duplex, auto negotiation

● Auto-10/100/1000Mbps

● Fully automatic recognition of network interface

 Plug and play for easy access

 Operating temperature: -20 ~ 70°C

● Input voltage:12/24/48VDC(10.8~52.8VDC), supports reverse polarity protection

 Support various fiber optic interfaces(SC/ST/FC/SFP)

UT-2604GC series is a Gigabit network fiber optic transceiver, providing 4 10/100/1000Base-T Ethernet ports and 1  1000Base- X optical port; it is used for Ethernet port and optical cable data communication, it is suitable for the scenarios of intelligent community or FTTD(fiber to the desk).The series of products support -20 ~ 70°C operating temperature and good EMC performance to ensure normal operation in harsh environments, the series switch will greatly extend the distance of network transmission, can easily achieve the interconnection between the main board server, repeater, hub, and terminal, for video surveillance, finance, education and other industries to build a network to provide cost-effective, safe and reliable solutions.

>>Protocol Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x



>>Interfaces

Fiber interfaces: 1*1000Base-XSC/FC/ST

RJ45 interface: 4*10/100/1000Base-T,auto MDI/MDI-X



>>Switching Performance

Forwarding Rate: 1488095pps

Transmission mode: Store and Forward

MAC address size: 2K

Cache size: 1Mb

Backplane bandwidth: 10G

Max. frame length: 16KB



>>Mechanical Characteristics

IP protection level: IP40

Installation: DIN-Rail /Wall Mounted



>>Power Requirement

Voltage input: 12/24/48VDC(10.8~52.8VDC)

Power consumption200mA@24Vmax

Terminal block: One pluggable 3-pin terminal block

Overload protection: Support

Reversal protection: Support



>>LED indicator light

PWR, FDX

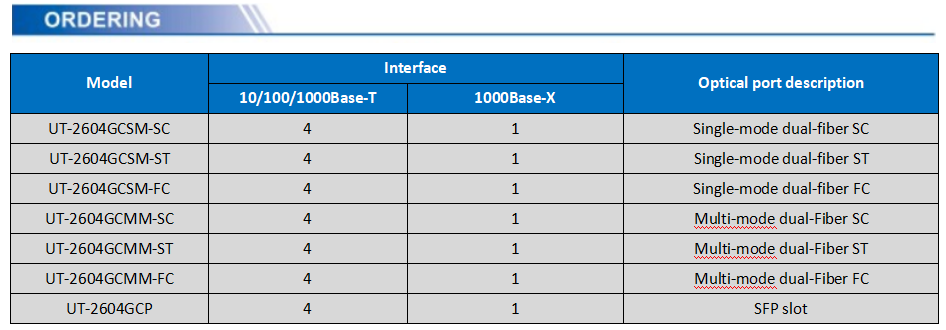

For example: UT-2604GCRSM-SC-40,  “R”is receiving single fiber,  “SM” is single mode,  “SC” fiber interface type is SC head,  “40” transmission km for 40km


>>Operating Environment

Operating temperature: -20 ~ 70°C

Storage temperature: -40 ~ 85°C

Relative humidity: 0 ~ 95%



>>Mechanical Dimension

Dimension (W x H x D): 150mm x 100mm x 37mm

Weight: 0.85kg

Packaging dimension: 250mm x 205mm x 55mm


>>Industrial Standards

EMI:

FCC Part 15 Subpart B class A, EN55022 class A

EMS:

IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
