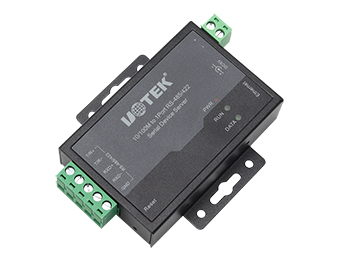

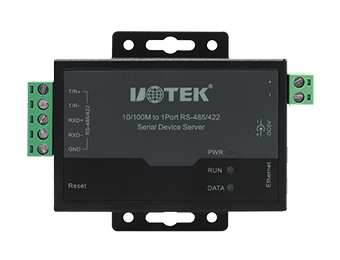

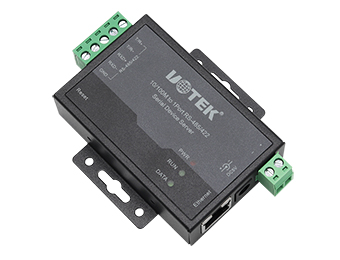

UOTEK 10/100M to 1 Ports RS-485/422 Serial Device Server

UT-6011 series serial device server provides serial port to network function, which can convert RS-485/422 serial port to TCP/IP network interface to achieve two-way transparent data transmission between RS-485/422 serial port and TCP/IP network interface. It enables serial devices to have TCP/IP network interface function immediately.

● CPU: 25MHz

● Memory: data cache space per port ≥ 2KB

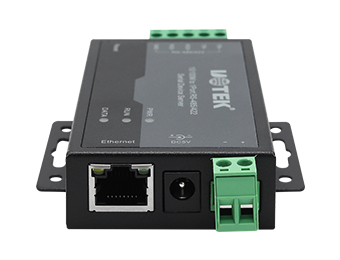

● Network port: RJ45 interface 10/100M (surge 10/700us common mode: 1000V/differential mode 500V) auto- MDI/MDI-X

● Network protocol: IP, ICMP, UDP, TCP

● System support: Windows/ Xp/2003/win7/win8/win10 32/64bit

● Operation modes: TCP SERVER, TCP CLIENT, UDP Modbus SERVER master mode, Modbus CLIENT master mode, Modbus SERVER slave mode, Modbus CLIENT slave mode

● Number of hosts: can support 2 hosts connected at the same time

● Configuration method: serial port configuration tool

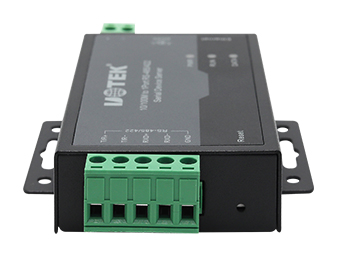

● Number of serial ports:  5.08-5PIN terminal

● Serial port protection: RS-485/422 surge 10/700us, common mode / differential mode 0.5KV

● Baud rate: 100-921600bps

● Parity bits: None, Odd, Even, Mark, Space

● Data bits: 8

● Stop bits: 1,2

● Flow control: RTS/CTS

● Supply voltage: 5V(4.75~5.25V)

● Operating current: 158mA

● Power supply interface: 5.08mm 2Pin terminal block and DC socket

● Operating temperature: -40~85°C

● Storage temperature: -40~85°C

● Relative humidity：5~95%RH,(no condensing)
