Product name:

UOTEK 10/100M to 8 Ports RS-232/485/422 Serial Device Server

Model: UT-6808 Series

● With metal housing and multiple mounting design, suitable for industrial applications
● Wide power input (12~48VDC), suitable for different power supply methods
● Up to 8 RS232/RS485/RS422 ports for multi-serial applications
● Wide baud rate range of 300-921600bps, suitable for inter-device applications
● Support multiple operation modes: VCOM, MCP, TCP SERVER, TCP CLIENT, UDP, Remote Pair mode, Modbus TCP SERVER, Modbus TCP CLIENT, MQTT.
● Support secondary development of software, to meet the special applications of different scenarios.
● Support for Web firmware upgrades for special applications in different scenarios

UT-6808 serial device server provides a function that converts RS-232/485/422 serial ports into TCP/IP network interfaces, enabling transparent bi-directional data transmission between RS-232/485/422 serial ports and TCP/IP network interfaces. Enables serial devices to immediately have TCP/IP network interface functionality.


Module

Supply Voltage

Connection

Communication Mode

UT-6808

12-48V

RJ45

RS-232/RS485/RS422

UT-6808MT

12-48V

3.81 Terminal

RS485/RS422

UT-6808-5V

5V

RJ45

RS-232/RS485/RS422

UT-6808MT-5V

5V

3.81 Terminal

RS485/RS422


UT-6808

UT-6808MT

Processor

32bit 400MHZ

32bit 400MHZ

Storage

128M

128M

Ethernet interface

10/100M(Built-in 1.5KV electromagnetic isolation) auto MDI/MDI-X Ethernet interface, interface RJ45

10/100MBuilt-in 1.5KV electromagnetic isolationauto MDI/MDI-X Ethernet interface, interface RJ45

Serial Standard

RS-232, RS-485, RS-422

RS-485, RS-422

Serial Connector

8×RJ45

8×4Pin 3.81mm terminals

Indicator light

Power indicator light PWR, Running indicator light RUN

Power indicator light PWR, Running indicator light RUN

Power connector

DC-005 DC socket or 3Pin 5.08 terminal for power supply, with built-in protection against reverse connection, to avoid damage to the equipment by wrong positive and negative connection

DC-005 DC socket or 3Pin 5.08 terminal for power supply, with built-in protection against reverse connection, to avoid damage to the equipment by wrong positive and negative connection

Power range

DC12~48V

DC12~48V

Function buttons

1 factory reset button RESET

1 factory reset button RESET

Max.

power consumption

4.2W

4.2W

Housing

Metal housing, protection level IP30

Metal housing, protection level IP30

Operating environment

Storage temperature: -40~85°C

Operating temperature: -40~85°C

Relative humidity: 5% ~95% (Non-condensation)

Storage temperature: -40~85°C

Operating temperature: -40~85°C

Relative humidity: 5% ~95% (Non-condensation)

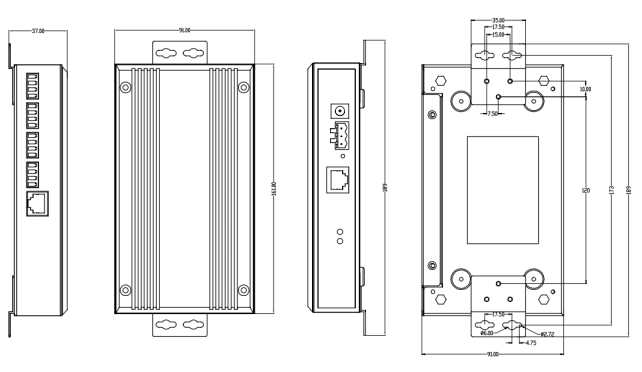

Dimensions L×W×H

161mm×91mm×37mmWithout mounting parts

161mm×91mm×37mmWithout mounting parts

Net. Weight

350g

350g
