Product name:

UOTEK 16 4G Gigabit Managed Ethernet Switch

Model: UT-62416F series

● Supports multiple combination for RJ-45 ports and fiber ports(ST/FC/SC/SFP slot)

● Supports IGMP Snooping and GMRP filter multicast packet

● Supports port-based VLAN, IEEE 802.1Q VLAN and GVRP

● Supports QoS(IEEE 802.1p/1Q) and TOS/DiffServ

● Supports STP/RSTP, SNMPv1/v2/v3

● Adopts RMON to improve network monitor forecast ability

● Supports UT-ring(single ring and cross ring)

● Support port mirroring, convenient for online debug

● Supports port transmission rate limitation, broadcast/multicast/uncertain unitcast storm relieving

● Supports power, port, UT-ring temperature abnormal status relay output alarm function

● Operating temperature: -40~75℃

UT-62416F series are managed industrial Ethernet switches. It supports up to 20 ports, which included 4 Gigabit fiber ports; this enhances the networking flexibility. This series supports port mirroring, VLAN, igmp, QoS, stp/Rstp, and other management, such as Console, Telnet, Web, SNMP, and relay alarm output. It provides safe and reliable solution for industrial automation, intelligent transportation, video monitoring, and other industrial application networking access.


Remarks:

1. Single-mode dual-fiber SC port/SFP slot is a standard configuration for optic ports of products above mentioned, with optional ST/FC

2. The suffix “F” in “BNF” means 12/24/48VDC(10.8~52.8VDC)power input;

    The suffix “D” in “BND” means 110/220VAC/DC(88~264VAC/DCdual power input


>>Standards & Protocols

Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab,

             IEEE802.3z, IEEE802.1Q, IEEE802.1p,

             IEEE802.1D, IEEE802.1W

Protocol: ICMP, TCP, HTTP, Telnet, UT-Ring, STP/RSTP,

          SNMP, LLDP, IGMP-Snooping, GMRP

Flow control: IEEE802.3x flow control, back pressure flow control


>>Ports

Fiber port: 100Base-FX(SC/FC/ST)

                 1000Base-X(SFP slot)

RJ-45 port: 10/100Base-T(X), auto MDI/MDI-X


>>Transmission Distance

Cat.5e: 100m

Fiber Patch Cord

Single-mode: 1310nm 20/40/60Km

                   1550nm 80/100/120Km

Multi-mode: 1310nm 2Km


>>Switching Performance

Forwarding rate:

100M ports: 148,810pps

1000M ports: 1,488,095pps

Transmission mode: store-and-forward

MAC address buffer: 8K

Switching bandwidth: 11.2G


>>Power Requirement

Voltage input:

Option 1: 12/24/48VDC(10.8~52.8VDC)

Option 2: 110/220VAC(88~264VAC)/50-60Hz or 110/220VDC(88~264VDC)

Supports dual power input


>>Consumption

Rated power: 20W

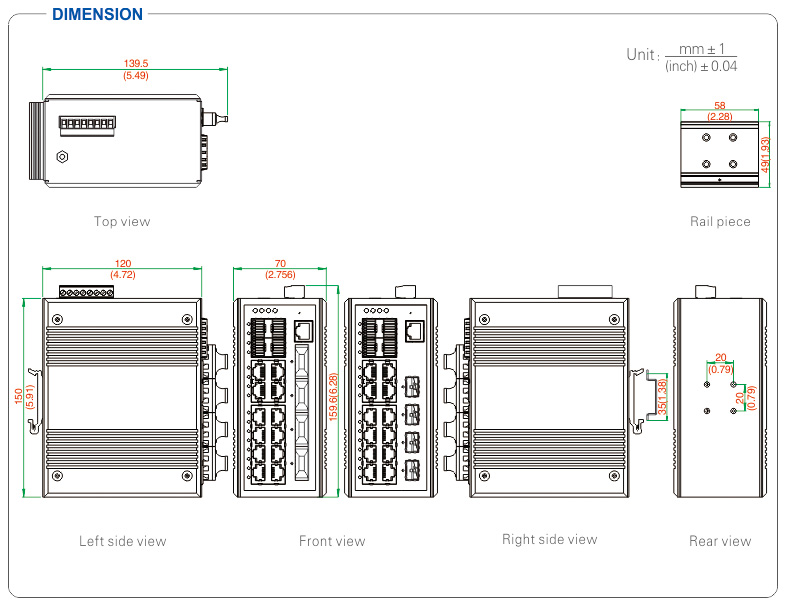

>>Mechanical Characteristics

IP rating: IP40

Weight: <2000g

Installation: DIN-Rail

Size: 150 mm×120mm×70mm


>>Environment

Operating temperature: -40℃~75℃

Storage temperature: -40℃~75℃

Relative humidity: 0~95% (non-condensing)


>>Industrial Standards

EMI:

FCC Part 15, CISPR (EN55022) class A

EMS:

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)
