Model： UT-60416F series
● Supports full-duplex or
half-duplex, auto negotiation
● Supports 10/100Base-T(X), auto detection, auto MDI/MDI-X
● Built-in store-and-forward, 8k buffer
● Operating temperature: -40~75℃
● IP rating: IP40
● Relay output auto alarm function
● Redundant dual power input, nonpolarity, overload and reverse polarity protection
● Compatible with Telecom standards, MTBF>300,000 hours
UT-60416F series are unmanaged industrial Ethernet switches. It supports up to 20 ports, which included 4 Gigabit fiber ports; this enhances the networking flexibility. This switch is low power consumption; the fanless design prevent it from noise interference; the operating temperature range is from -40~85℃, and it is with good EMC compatibility. These make the switch provides safe and reliable solution for industrial automation, intelligent transportation, video monitoring, and other industrial application networking access.

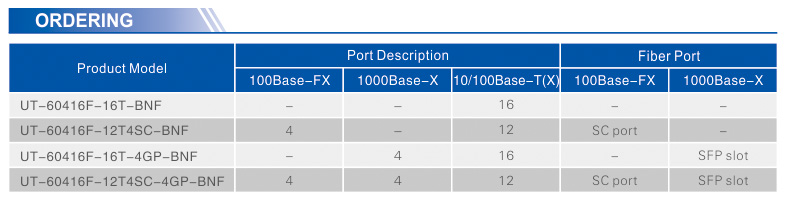

Remarks:
1. Single-mode dual-fiber SC port/SFP slot is a standard configuration for products above mentioned, with optional ST/FC
2. The suffix “F” in “BNF” means 12/24/48VDC（10.8~52.8VDC）power input;
The suffix “D” in “BND” means 110/220VAC/DC（88~264VAC/DC）dual power input
>>Standards
IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab
>>Ports
Fiber ports: 100Base-FX(SC/FC/ST)
1000Base-X(SFP slot)
RJ-45 ports: 10/100Base-T(X), auto
MDI/MDI-X
>>Transmission Distance
Cat. 5e: 100m
>>Fiber Patch Cord
Single-mode: 1,310nm 20/40/60Km
1,550nm 20/40/60/80/100/120Km
Multi-mode: 1,310nm 2Km
>>Switching Performance
Forwarding rate:
100M ports: 148,810pps
1000M ports: 1,488,095pps
Transmission mode: store-and-forward
MAC address buffer: 8K
Switching bandwidth: 11.2G
>>Power Requirement
Voltage input: 110/220VAC(88~264VAC)/50-60Hz or
110/220VDC(88~264VDC)
supports redundant dual power input
>>Power Consumption
Rated power: 20W
>>Mechanical Characteristics
IP rating: IP40
Weight: <2000g
Installation: DIN-Rail
>>Dimension
Size(W×H×D): 150 mm×70mm×120mm
>>Environment
Operating temperature: -40℃~75℃
Storage temperature: -40℃~75℃
Relative humidity: 0~95%(non-condensing)
>>Industrial Standards
EMI:
FCC Part 15, CISPR (EN55022) class
A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
