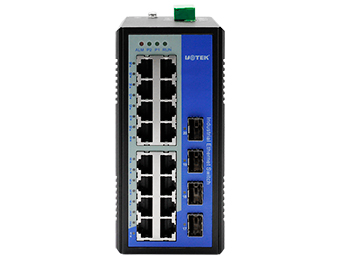

Model： UT-60020G series
● Supports up to 20 ports, multiple combination for RJ-45 ports and fiber ports
● With optional SC/ST/FC/SFP ports
● Supports full-duplex and half-duplex, auto MDI/MDI-X
● Supports store-and-forward
● Operating temperature: -40℃~85℃
● Compatible with Telecom standard, MTBF> 500,000 hours
● No blocking, full linear forwarding, shorten the network delay
● IP40, fanless design, low consumption
● Supports power alarm function

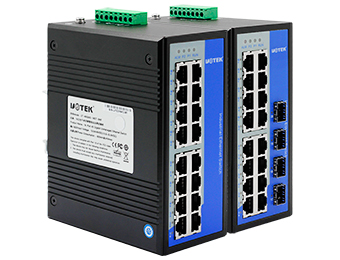

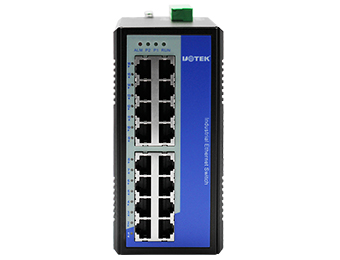

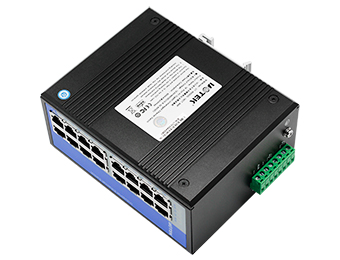

UT-60020G series are unmanaged full Gigabit industrial Ethernet switches. It adopts modular design, which supports up to 4 Gigabit fiber ports and 16 Gigabit RJ-45 ports, this enhances the networking flexibility. This switch is low power consumption; the fanless design prevents it from noise interference; the operating temperature range is from -40~85°C. These makes it provides with safe and reliable solution for industrial automation, intelligent transportation, video monitoring, and other industrial application networking.

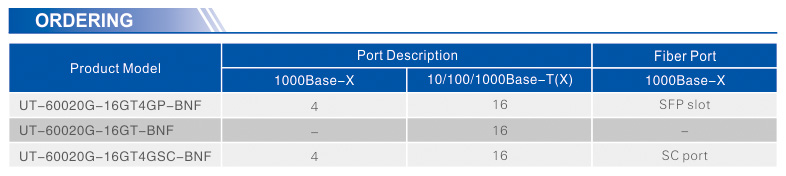

Remarks:
1. Single-mode dual-fiber SC port/SFP slot is a standard configuration for products above mentioned, with optional ST/FC
2. The suffix “F” in “BNF” means 12/24/48VDC（10.8~52.8VDC）power input;
The suffix “D” in “BND” means 110/220VAC/DC（88~264VAC/DC）dual power input
>>Standards
IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab
>>Ports
Fiber port: 1000Base-X(SC/ST/FC/SFP slot)
RJ-45 port: 10/100/1000Base-T(X), auto MDI/MDI-X
>>Transmission Distance
Cat.5e: 100m
>>Fiber Patch Cord
Single-mode: 1,310nm 20/40/60Km
1,550nm 80/100/120Km
Multi-mode: 1,310nm 2Km
>>Switching Performance
Forwarding rate: 1,488,095pps
Transmission mode: store-and-forward
MAC address buffer: 8K
Switching bandwidth: 40G
>>Power Requirement
Voltage input
Option 1: 12/24/48VDC(10.8~52.8VDC)
Option 2: 110/220VAC(88~264VAC)/50-60Hz or 110/220VDC(88~264VDC)
Supports dual power input
>>Power Consumption
Rating power: 5W

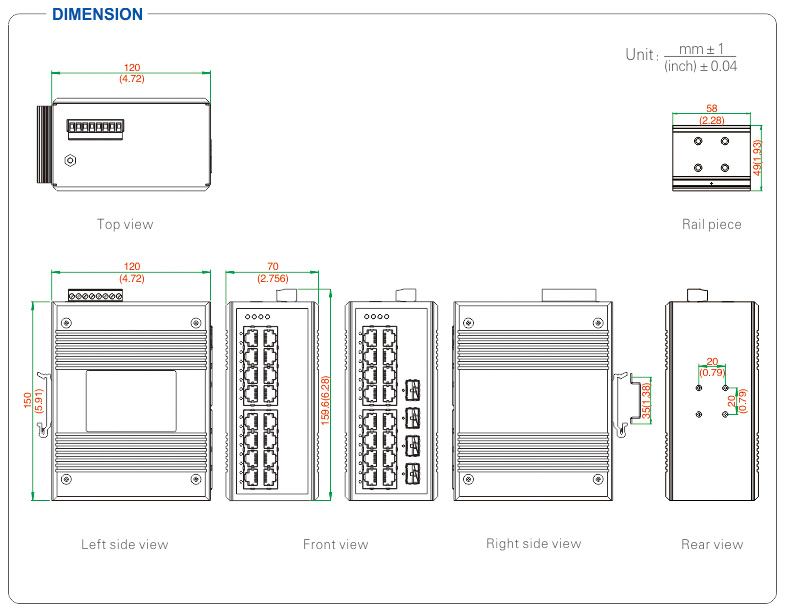

>>Mechanical Characteristics
IP rating: IP40
Weight: <1,600g
Installation: DIN-Rail
Size: 150×120mm×70mm
>>Environment
Operating temperature: -40℃~85℃
Storage temperature: -40℃~85℃
Relative humidity: 0~95%(non-condensing)
>>Industrial Standards
EMI:
FCC Part 15, CISPR (EN55022) class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
