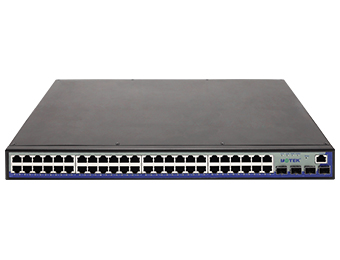

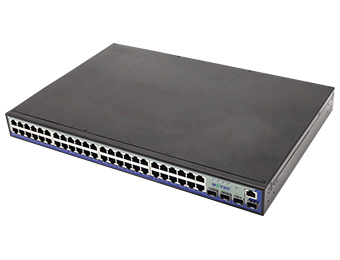

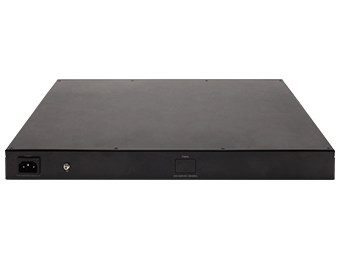

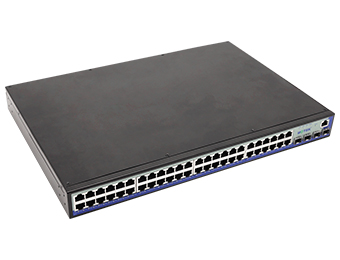

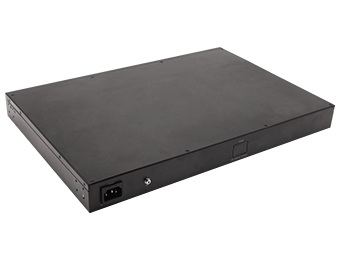

Product name: 10G Layer 3 Managed Ethernet Switch

Model: UT-63448GC-48GT-4XGP

● 48 Gigabit ports + 4 10Gbps SFP+ ports

● 10Gbps SFP+ ports, support 10Gigabit/Gigabit

● PIM-SM, IGMP Snooping filter multicast packets

● IEEE 802.1Q VLAN, convenient for network design

● QoS with 8 queue mapping to increase network stability

● Ring, ERPS, STP/RSTP/MSTP network redundancy, broadcast storm protection

● SNMPv1/v2v3 to ensure network security management

● Link aggregation (static convergence/LACP) to optimize network bandwidth

● ACL IPV4/IPV6 to enhance flexibility and network management security

● Port mirroring, convenient for online debugging

● Port speed limit\broadcast storm suppression\multicast storm suppression\unknown unicast storm suppression

● RMON for high efficiency on network monitoring

● Supports loop circuit detection

● Supports log management

● Layer 3 switching function (static routing/RIP/OSPF/VRRP)

● Power supply, port abnormal status alarm function

● Operating temperature: -40~75°C

● IP40 protection, fan-less, rackmount design

Overview

UT-63448GC series is a high-performance, cost-effective managed 10G Layer 3 Ethernet switch. It provides 48 Gigabit ports, 4 10G SFP+ ports; this not only increasing the bandwidth, but also improving network data communication, it is suitable for large-scale industrial network applications.

The switch supports a variety of Layer 2 features (port mirroring, VLAN, port aggregation, IGMP Snooping, QoS, STP/RSTP/MSTP, etc.) and basic Layer 3 routing protocols (static routing/RIP/OSPF/VRRP), which providing users with a complete solution to build large scale networking for industrial automation, intelligent transportation, video surveillance, etc.

Parameter

Protocol Standard

Standard:IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.3ab, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1w, IEEE802.1s, IEEE802.3ad, IEEE802.1x, IEEE802.3ae

Protocol: ARP, ICMPTCP, HTTP/HTTPS, Telnet, STP/RSTP/MSTP, LLDP, IGMP-SnoopingSNMPv1/v2c/v3, DHCP Server,  NTP, LACP, VLAN, Ring, ERPS, SSH, RMON, UDLD

Layer 3 switching technologies: static routing, RIP V1/V2, OSPF, VRRP, PIM-SM router redundancy

Flow control: IEEE802.3x, backpressure flow control

Interface

Fiber port: 1Gbps SFP/10Gbps SFP+

RJ-45 port: 10/100/1000Base-T, auto-MDI/MDI-X

Console port: serial port debugging (RJ45 port)

LED indicator

power indicator, network indicator, alarm indicator, running indicator

Transmission Distance

Cat.5e: 100m

Optical module

Single-mode: 1,310nm 20/40Km

           1,550nm 60/80/100/120Km

Multi-mode: 1,310nm 2Km

Switch property

100M forwarding rate: 148,810pps

1000M forwarding rate: 1,488,095pps

10G forwarding rate: 14,881,000pps

Transmission mode: store and forward

MAC address size: 32K

Cache size: 16Mb

Switching bandwidth: 216G

Max. frame length: 12KB

Host unicast routing: 12K (IPv4)/4K (IPv6)

Segment unicast routing: 12K (IPv4/IPv6)

Power requirement

Input voltage: 110/220VAC (88~264VAC)/50-60Hz or 110/220VDC (88~264VDC) This equipment utilizes single power input, with optional dual power redundant input.

Power consumption

No-load power: 20W

Full-load power: 50W

Mechanical characteristic

IP Rating: IP40

Weight: <4.8kg

Installation: Rack mounting

Device size (W x H x D): 440mm x 44mm x 300mm

Operating environment

Operating temperature: -40 ~ 75°C

Storage temperature: -40 ~ 85°C

Relative humidity: 0~95% (non-condensing)

Industrial standard

EMI

FCC Part 15CISPR (EN55022) class A

EMS

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC(EN)61000-4-8

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)
