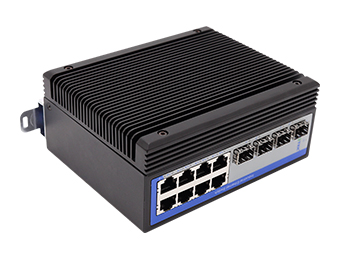

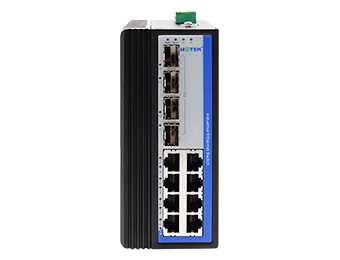

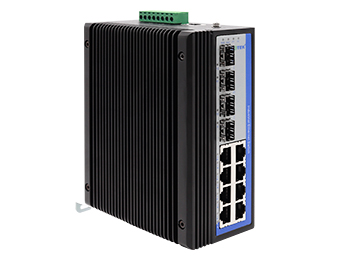

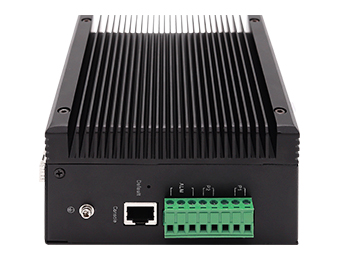

Product name: 8G+4XG 10 Gigabit Layer 3 Managed Ethernet Switch

Model: UT-63408GC-8GT-4XGP

● Supports 8 Gigabit Ethernet ports + 4 10Gbps SFP+ interfaces

● 10GBase-R SFP interfaces support web-configurable 1000Base-X or 10GBase-R mode selection

● Supports PIM-SM and IGMP Snooping for multicast packet filtering

● Supports IEEE 802.1Q VLANs for simplified network planning

● Supports 8 QoS-enabled queues to enhance network stability

● Supports Ring, ERPS, STP/RSTP/MSTP network redundancy to prevent broadcast storms

● Supports SNMPv1/v2c/v3 for secure network management

● Supports link aggregation (static aggregation/LACP) to optimize network bandwidth

● Supports access control lists (ACL IPV4/IPV6) for enhanced flexibility and network management security

● Supports port mirroring for convenient online debugging

● Supports port rate limiting, broadcast storm suppression, multicast storm suppression, and unknown unicast storm suppression to ensure network stability

● Supports RMON for efficient and flexible network monitoring

● Supports VLANs to simplify network planning

● Supports loop detection to effectively eliminate impacts from port loops

● Supports SFP DDM for fiber diagnostics and troubleshooting

● Supports log management

● Supports Layer 3 switching functions (static routing/RIP/OSPF/VRRP)

● Supports power and port status indicator alarms

● Supports wide temperature operation: -40°C to 75°C


Overview

The UT-63408GC-8GT-4XGP series is a managed 10 Gigabit Ethernet Layer 3 switch. It provides 8 Gigabit Ethernet ports + 4 10Gbps SFP+ interfaces, not only increasing bandwidth and enhancing network data communication but also making it highly suitable for large-scale industrial network applications.

This product supports multiple Layer 2 software features (port mirroring, VLAN, port aggregation, IGMP snooping, QoS, STP/RSTP/MSTP, etc.) and fundamental Layer 3 routing protocols for IPv4/IPv6 (static routing/RIP/OSPF/VRRP), providing users with a comprehensive solution. It offers more options for building large-scale local area networks in industrial application fields such as factory automation, intelligent transportation, and video surveillance.

Parameter

Protocol Standard

Standard: IEEE802.3IEEE802.3uIEEE802.3xIEEE802.3zIEEE802.3abIEEE802.1QIEEE802.1pIEEE802.1DIEEE802.1wIEEE802.1sIEEE802.3adIEEE802.1xIEEE802.3ae

Protocol: ARPICMPTCPHTTP/HTTPS TelnetSTP/RSTP/MSTPLLDPIGMP-SnoopingSNMPv1/v2c/v3DHCP ServerNTPSSHIPV6LACPVLANERPSRMONUDLD


Layer 3 Switching Technology: Static Routing, RIP V1/V2, OSPF, VRRP, PIM-SM, Supports Router Redundancy

Flow Control: IEEE 802.3x Flow Control, Backpressure Flow Control

Ports

Fiber Optic Port: 10GBase-R SFP+ port

RJ45 Port: 10/100/1000Base-T port, MDI/MDI-X auto-sensing

LED Indicators

Power Indicator, Alarm Indicator, Operation Indicator

Transmission Distance

Category 5e Twisted Pair Cable: 100m

Fiber Optic Module

Single-mode: 1310nm   20/40Km

               1550nm   60/80/100/120Km

Multimode: 1310nm   2Km

Switching Performance

100Mbps Forwarding Rate: 148,810 pps

1Gbps Forwarding Rate: 1,488,095 pps

10 Gigabit forwarding rate: 14,881,000 pps

Transmission mode: Store-and-forward

MAC address space: 16K

Cache space: 12Mb

Backplane bandwidth: 96G

Maximum Frame Length: 12KB

Host Routing Table: 6K (IPv4), 2K (IPv6)

Subnet Routing Table: 512 (IPv4), 128 (IPv6)

Power Requirements

Input Voltage: 12/24/48VDC (10.8~52.8VDC), with reverse polarity protection



Power Consumption

Maximum Input Power Consumption: 650mA@24Vmax (Refer to the product label for detailed power consumption specifications)



Mechanical Specifications

Enclosure: IP40 protection rating

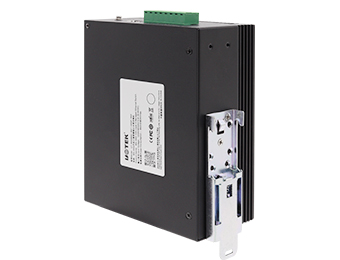

Mounting Method: DIN rail mounting

Weight: 1.3 kg

Dimensions (W x H x D): 150mm x 64mm x 120mm

Packaging Dimensions: 250mm x 205mm x 108mm

Operating Environment

Operating Temperature: -40°C to 75°C

Storage Temperature: -40°C to 85°C

Relative Humidity: 5% to 95% (non-condensing)

Standards

EMIFCC Part 15 Subpart B classAEN55022 class A

EMS

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC(EN)61000-4-8

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)

IEC 60068-2-6(Vibration)
