Product name:

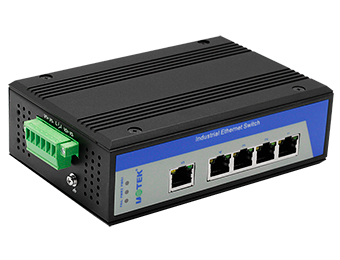

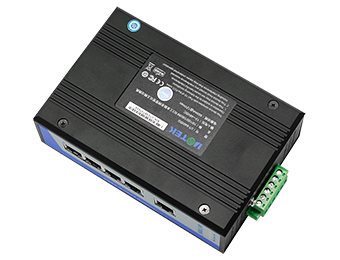

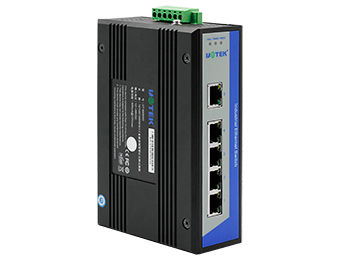

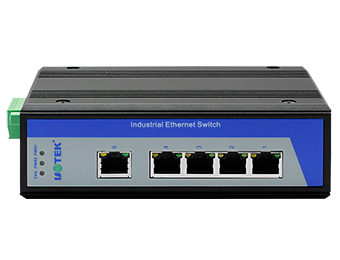

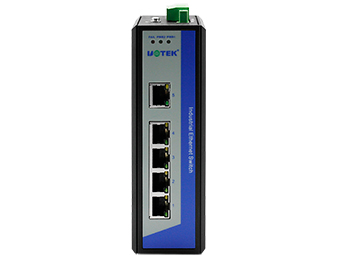

UOTEK 5-Port Full Gigabit Ethernet Switch

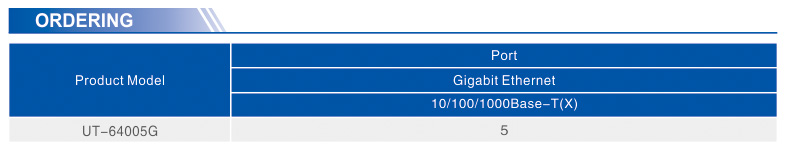

Model: UT-64005G

5x 10/100/10001000Base-TX Ethernet ports

Supports full-duplex or half-duplex, auto negotiation

10Mbps/100Mbps/1000Mbps, auto negotiation

Auto MDI/MDI-X

Built-in store-and-forward, 1M buffer, support multiple protocols

Lightning surge protection(power): 5000A(8/20μs)

Relay output alarm function

Redundant DC power input protection

Telecom standards, MTBF>400,000 hours

UT-64005G is a DIN-Rail industrial Ethernet switch. It supports 5x1000M Ethernet ports; it supports DC 12/24/48V, redundant power input, with reverse polarity protection, IP30 protection. UT-64005G supports industrial EMC level 4 protection, ESD, surge protection. It adopts fanless design & low power consumption design. The working temperature range is from -40℃~85(non-condensing). UTEK switch can be worked stable under any poor condition environment. It is a switch with high stability, which meets all kinds of industrial networking requirement. In all, it is your best choice to build fast & stable industrial network.


>>Standards
IEEE 802.3 10Base-T

IEEE 802.3u 100Base-T(X) & 100Base-FX

IEEE 802.3ab 1000Base-T(X)



>>Ports
Gigabit Ethernet: 5x 1000M RJ-45 ports, supports 10/100/1000Base-T(X)

LED indication: PWR1, PWR2, FAIL,RJ-45 indicator

Alarm contact: 1-ch relay output, NONC, capacity 1A @ 24VDC



>>Power requirement
Voltage input: DC 12/24/48V, redundant power input

Power consumption: max. 5 Watts

Surge protection(Ethernet): ±8KV contact discharge

                         ±15KV air discharge

Lightning surge protection(Ethernet): common mode±4KV(10/700μs)

                                  Differential mode ±2KV(10/700μs)

Lightning surge protection(power): 5000A(8/20μs)

Terminal block: 1x pluggable 6-pin terminal block

Overload protection: Yes

Reverse polarity protection: Yes



>>Mechanical characteristics

IP rating: IP30 protection

Installation: DIN-Rail/wall-mounted(DIN-Rail default)

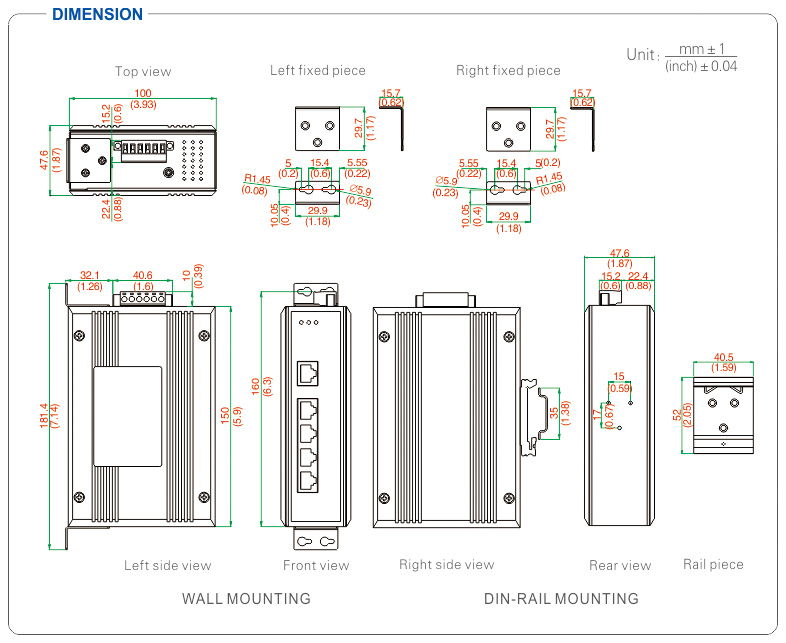

Dimension(W x H x D)150mm×47.6mm×100mm

>>Environment
Working temperature: -40
℃~85

Storage temperature: -40℃~85

Relative humidity: 595% (non-condensing)



>>Industrial standards
EMI: FCC Part 15 Subpart B classA, EN55022 class A

EMS:

IEC(EN)61000-4-2(ESD), level 4

IEC(EN)61000-4-3(RS), level 3

IEC(EN)61000-4-4(EFT), level 4

IEC(EN)61000-4-5(Surge), level 4

IEC(EN)61000-4-6(CS), level 3

IEC(EN)61000-4-8

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)

IEC 60068-2-6(Vibration)
